Preliminary work before wheel alignment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Correctly adjust tire pressure.
- Check chassis components for damage and repair, if necessary.
- On vehicles with rear axle slip angle control:
Run the service function "HSR actuator to center position".
- Drive the vehicle onto the axle alignment test stand so the front wheels and rear wheels are positioned in the center of the turntables and sliding plates.NOTE: TECHNICAL INFORMATION
Please observe the regulations of the various equipment manufacturers. - Position sensor/ride height markers on the vehicle.
- In the Kinematics Diagnosis System, enter the customer and vehicle data.
- Identify the equipment specifications of the vehicle and select the vehicle.
If the spring strut does not feature a label to identify the suspension, the type of chassis can be identified by the part number in the applicable BMW parts catalogue.
- Enter tire pressure and tread depth.

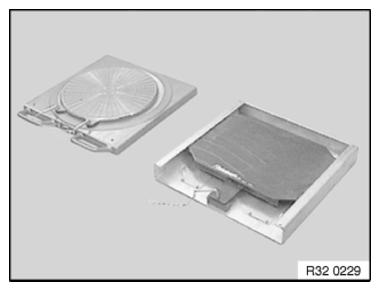

- Remove locking pins from both rotating and sliding plates.
- Install the brake pedal tensioner.
