Positioning the mobile lifting table

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Position mobile lifting table centrally 2 184 136 under vehicle and jack it up.

Courtesy of BMW OF NORTH AMERICA, INC.

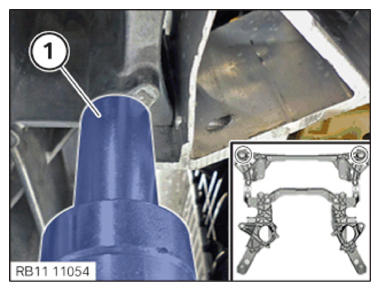

Position mounting elements (1) with mountings (50) at front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

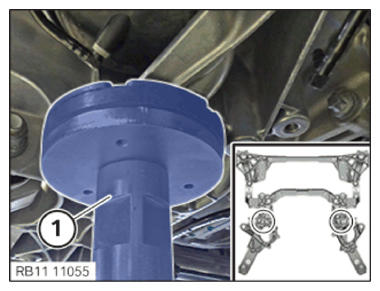

Position mounting elements (1) with mountings (80) at front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

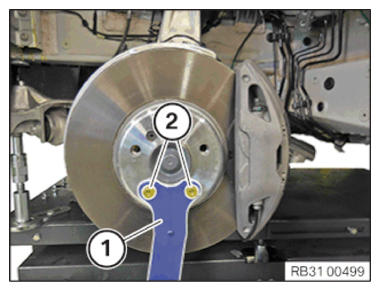

Position the mount (1) for the swivel bearing.
Hand-tighten the bolts (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
