Partially installing the right oil feed line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

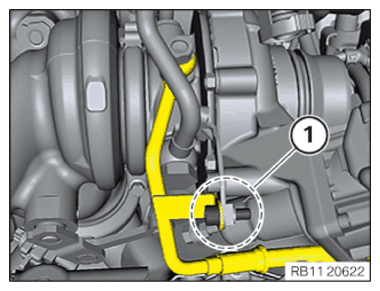

- Replace the screw (1)
.
Parts: Screw

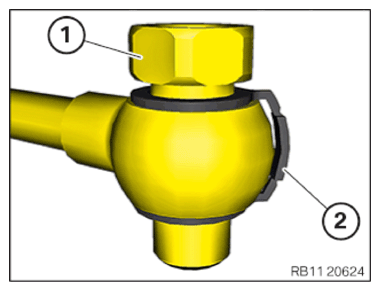

- Replace the sealing ring or sealing rings (2)
.
Parts: Sealing ring or sealing rings
Make sure that when installing sealing rings without a fitting aid (bridge), both sealing rings are replaced.
- Position screw (1) with sealing ring or sealing rings (2) on the oil feed line.
- Position oil feed line.

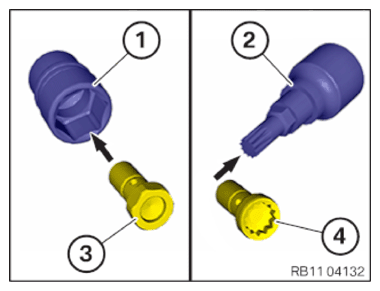

- Determining the screw type and selecting the appropriate socket wrench:
Screw type Matching socket wrench Hexagon screw (3) Commercial socket wrench (1) Multi-tooth screw (4) Multi-tooth socket wrench (2) - Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION
Oil feed line to exhaust turbocharger Banjo bolt M10x1

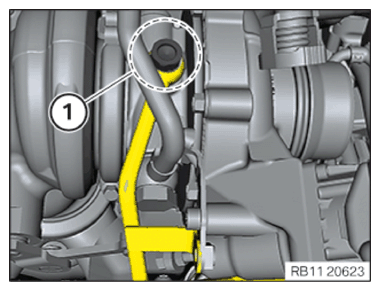

Replace screw.Joining torque 8 Nm Angle of rotation 70° - Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Oil feed line holder to exhaust turbocharger | ||
| M6x16 screw | Tightening torque | 10 Nm |
