Loosening the tension strut on the left and right from the front axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
NOTE:
Perform the steps on the right and left side.

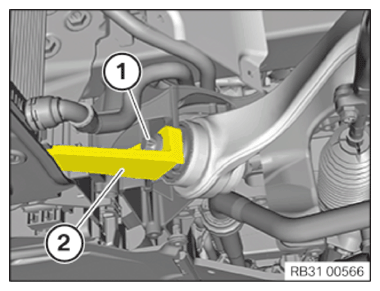

- Version A:
Loosen screw (1) .
Remove the screw (1) with the crash lever (2) .

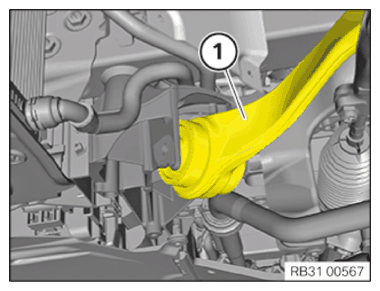

- Release the tension strut (1)
from the front subframe.

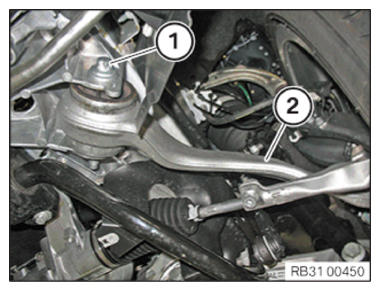

- Version B:
Loosen screw (1) .
Release the tension strut (2) from the front subframe.
