Installing transmission cross member
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

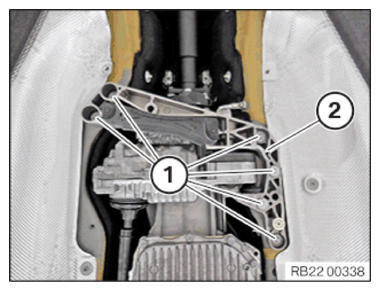

- Install the transmission cross member (2) .
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 tightening torque 19 Nm - Release the luggage strap (1) from the transmission.

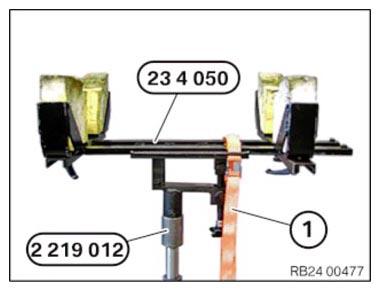

- Remove the special tools 2 219 012 and 0 495 498 (23 4 050) .
