Installing the steering gear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The screws for the steering gear are self-tapping. Therefore, no thread must be cut into the steering gear (or transmission).
The screws for the steering gear are self-tapping. Therefore, no thread must be cut into the steering gear (or transmission).

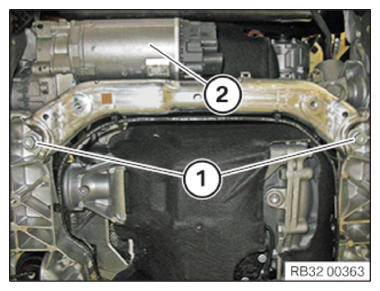

- Install the steering gear (2) .
- Position the screws (1)
and only hand-tighten them.

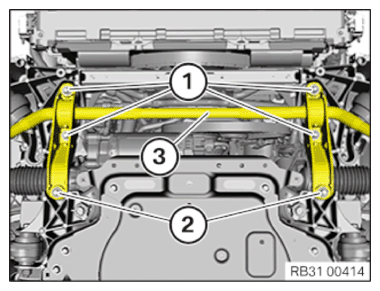

- Install the anti-roll bar (3) .
- Position the screws (1)
and (2)
and only hand-tighten them.NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.

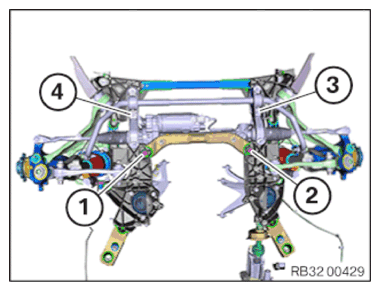

Non-compliance with the regulations can lead to damage. - Tighten the screws of the steering gear in the sequence (1)
to (4)
.TIGHTENING TORQUES SPECIFICATION
Steering gear to front axle support (all-wheel drive vehicles) M12
Replace screws.Joining torque 60 Nm Angle of rotation 90° - Tighten the screws (1)

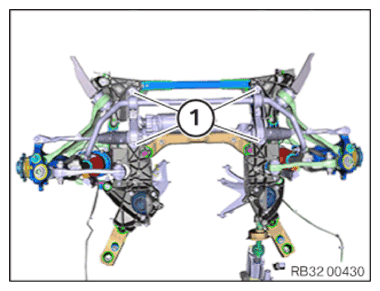

of the anti-roll bar on the front subframe.TIGHTENING TORQUES SPECIFICATION
Holder, stabilizer mounting to front axle support M12

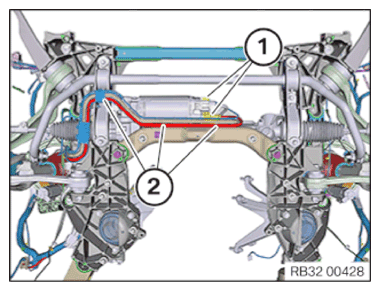

Replace screw.Joining torque 100 Nm Angle of rotation 45° - Clip in the cable duct (2) on the front subframe.
- Connect all connectors (1) and lock.
