Installing the special tool to secure the camshafts of cylinder bank 2
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Check

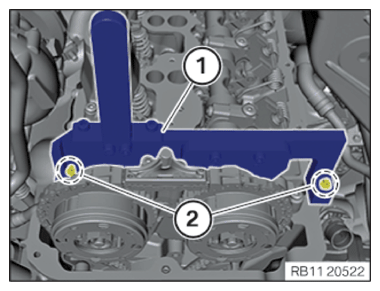

- Position the special tool 2 249 117 (1) on the camshafts of cylinder bank 2.
- Check if the camshafts can be fastened with the special tool 2 249 117 (1) .
- Check if the special tool 2 249 117 can be brought in contact with the cylinder head using the two screws of the cylinder head cover (2) .
Result
» The camshafts can be fastened.
Measure
- Loosen screws (2) .
Remove the special tool 2 249 117 (1) .
Continue the repair in the next step.
Result
» The camshafts cannot be fastened.
Measure
- Adjust the timings of cylinder bank 2.
