Installing the service opening cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

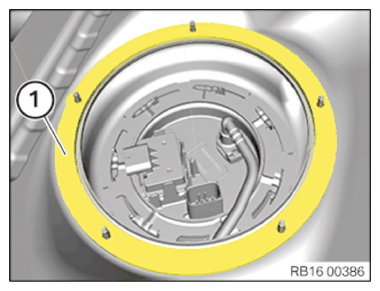

Replace the seal (1).
Parts: Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

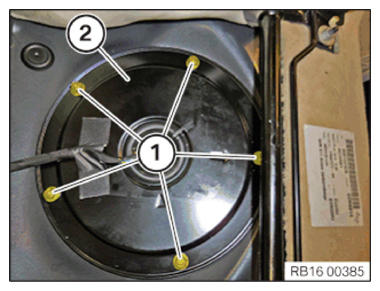

Mount the cover (2).
Arrow must point in the driving direction.
Replace the plastic nuts (1).
Parts: Plastic nuts

Insert plastic nuts (1) and tighten.

TIGHTENING TORQUES SPECIFICATION

Cover of sensor opening on body
Replace plastic nut.	tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

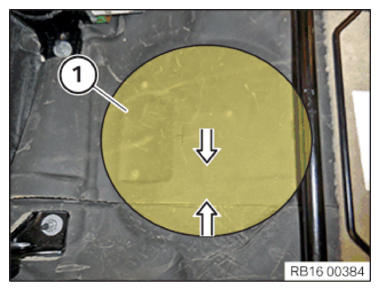

Close the floor trim in the area (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
