Installing the left oil feed line partially

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

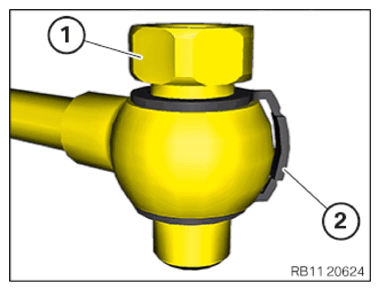

Replace the screw (1) .
Parts: Screw
Replace sealing ring(s) (2) .
Parts: Sealing ring(s)

When installing sealing rings without installation aid (bar), both sealing rings must be replaced.
Position screw (1) with the sealing ring or sealing rings (2) on the oil feed line.
Position oil feed line.

Courtesy of BMW OF NORTH AMERICA, INC.

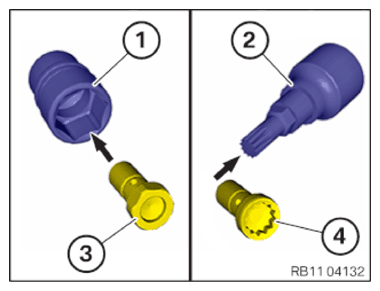

Determining the screw type and selecting the appropriate socket wrench:

Screw type	Matching socket wrench
Hexagon screw (3)	Commercial socket wrench (1)
Multi-tooth screw (4)	Multi-tooth socket wrench (2)

Courtesy of BMW OF NORTH AMERICA, INC.

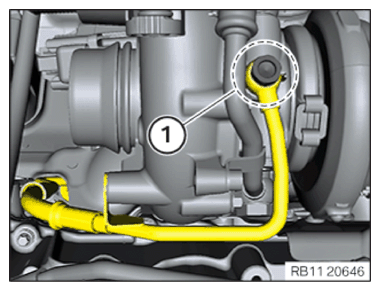

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Oil feed line to exhaust turbocharger
Banjo bolt M10x1 Replace screw.	Joining torque	8 Nm
	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.

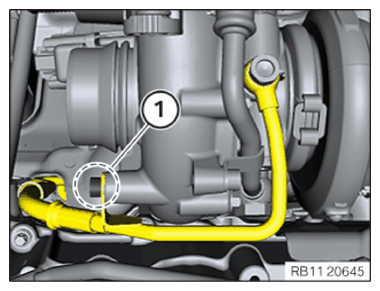

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Oil feed line holder to exhaust turbocharger
M6x16 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
