Installing the left intake plenum (cylinder head removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

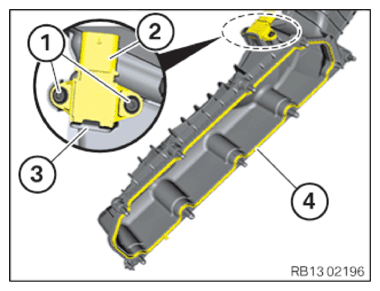

Replace the seal (4) .
Parts: Seal

Only during replacement of the intake plenum:

Loosen screws (1) .

Unlock pressure sensor (2) on the retaining tab (3) .

Remove pressure sensor (2) .

Position pressure sensor (2) .

Retaining tab (3) must audibly lock in.

Tighten down screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Pressure sensor
screw	Tightening torque	3 Nm

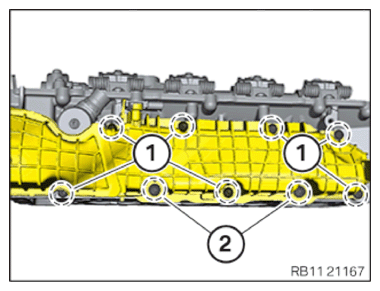

Position the left intake plenum.

Tighten down screws (1) .

TIGHTENING TORQUES SPECIFICATION

Intake plenum
M6 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2) .

TIGHTENING TORQUES SPECIFICATION

Intake plenum
M8 screw	Tightening torque	21.4 Nm
