Installing the left and right charge air cooler (engine removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

First guide down charge air cooler (2) and position it.
Replace hose with clamps (2) .
Parts: Hose, clamps

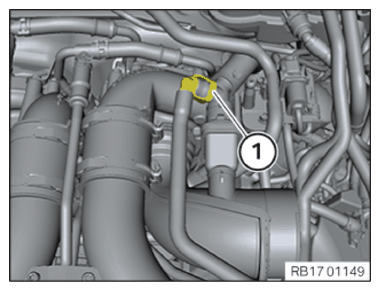

Tighten hose clamp (1) .

TIGHTENING TORQUES SPECIFICATION

hose
hose	Tightening torque	3.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

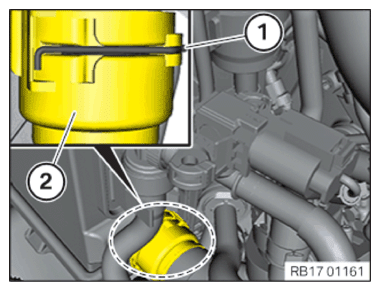

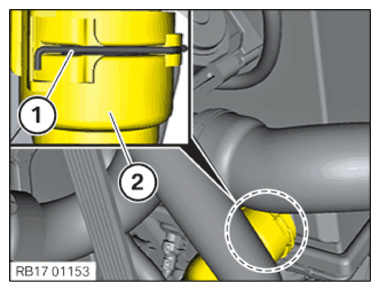

Connect hose (2) .
Retaining clip (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Engage the holder (2) on the charge air cooler.

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Charge air cooler top
M6x30 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

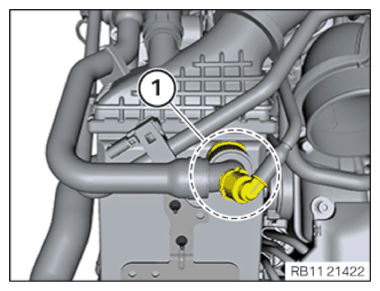

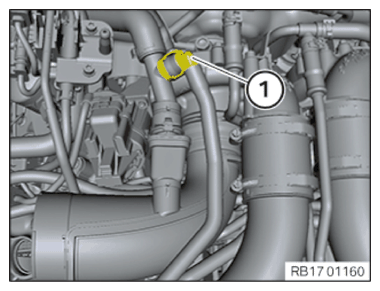

Connect the line (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Position holder (3) .

Tighten down screw (2) .

TIGHTENING TORQUES SPECIFICATION

Charge air cooler bottom
M6x18 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the hose.
Parts: Hose

Tighten the hose clamp (1) .

TIGHTENING TORQUES SPECIFICATION

hose
hose	Tightening torque	3.5 Nm

Slide the hose (2) onto the stud of the charge air cooler.
Replace hose clamp with hose.
Parts: Hose clamps and hose
Tighten the hose clamp (1) .
Thread in the hose (3) in the holder on the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

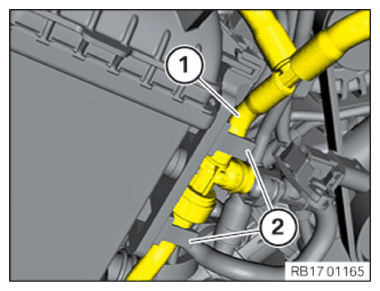

Attach the coolant lines (2) .
Retaining clip (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

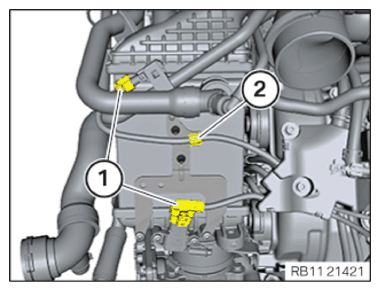

Position the cable in the cable bracket (2) and lock.
Connect and lock the plug connections (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

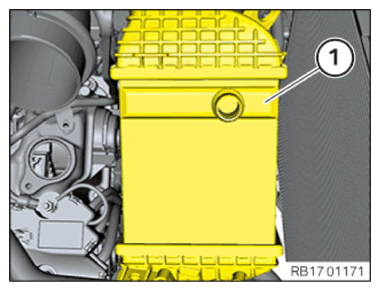

First, insert the charge air cooler (1) on the bottom and position. hose

Courtesy of BMW OF NORTH AMERICA, INC.

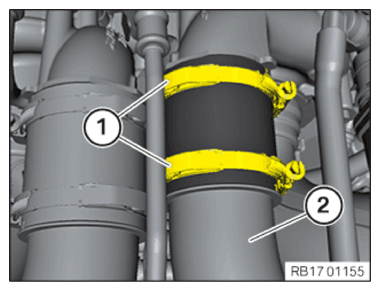

Replace the hose and clamps (1) .
Parts: Hose, clamps

Tighten the hose clamps (1) on the charge air cooler (2) .

TIGHTENING TORQUES SPECIFICATION

hose
hose	Tightening torque	3.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

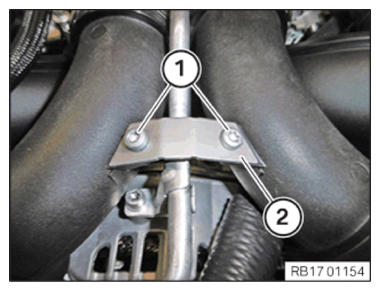

Position the connecting plate of the charge air cooler (2) .

Tighten down screws (1) .

TIGHTENING TORQUES SPECIFICATION

Connecting plate of charge air cooler
screw	Tightening torque	6.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

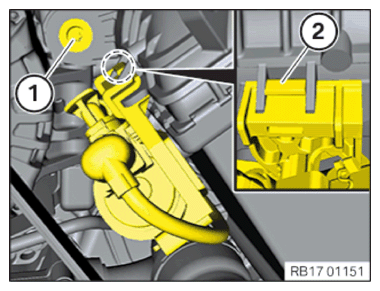

Connect plug connection (2) and lock.

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Charge air cooler top
M6x30 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

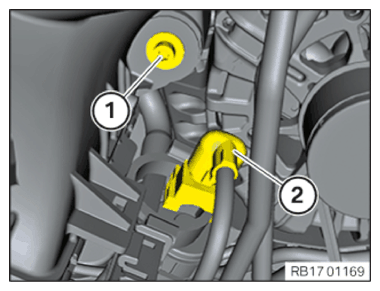

Snap line (1) into holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

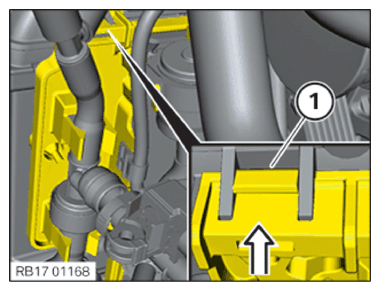

Position the centering pin on holder (1) downwards in lug (2) on the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.
Engage the holder (1) on the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the line.
NOTE: There is risk of breakage.
Connect plug connection (2) and lock.
Connect the line (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect hose (2) .
Retaining clip (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the line (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Position holder (3) .

Tighten down screw (2) .

TIGHTENING TORQUES SPECIFICATION

Charge air cooler bottom
M6x18 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the hose.
Parts: Hose

Tighten the hose clamp (1) .

TIGHTENING TORQUES SPECIFICATION

hose
hose	Tightening torque	3.5 Nm

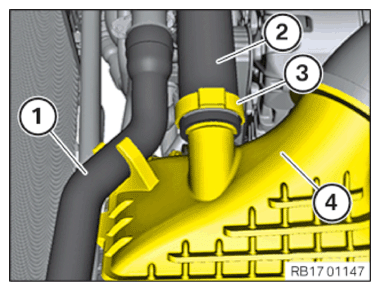

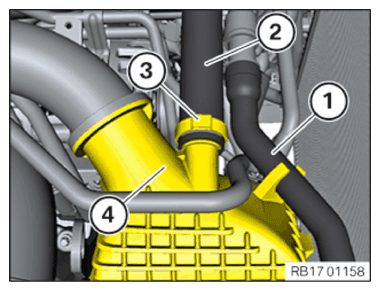

Slide the hose (2) onto the stud of the charge air cooler.
Replace hose clamp with hose.
Parts: Hose clamps and hose
Tighten the hose clamp (3) .
Thread in the hose (1) in the holder on the charge air cooler (4) .

Courtesy of BMW OF NORTH AMERICA, INC.
Slide the hose (2) onto the stud of the charge air cooler.
Replace hose clamp with hose.
Parts: Hose clamps and hose
Tighten the hose clamp (3) .
Thread in the hose (1) in the holder on the charge air cooler (4) .

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the coolant lines (2) .
Retaining clip (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing oil filler neck

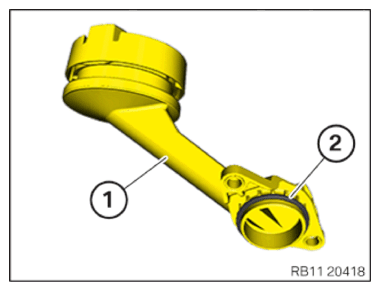

Replace the sealing ring (2) on the oil filler neck (1) .
Parts: Sealing ring
Coat the sealing ring (2) with the recommended engine oil.
ENGINE OIL SPECIFICATION

Technically suitable engine oils for BMW Group engines

Courtesy of BMW OF NORTH AMERICA, INC.
Position oil filler neck (1) .

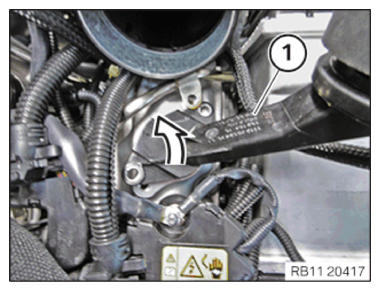

Turn oil filler neck (1) about 15° counterclockwise.

Courtesy of BMW OF NORTH AMERICA, INC.

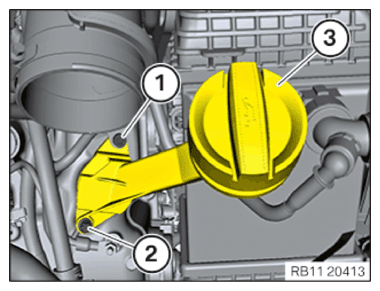

Tighten screw (2) on the oil filler neck (3) .

TIGHTENING TORQUES SPECIFICATION

Oil filler neck
M6x30	tightening torque	10 Nm

Tighten screw (1) on the oil filler neck (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Oil filler neck
M6x30	tightening torque	10 Nm
