Installing the heat shield of the cylinder head cover for cylinders 1 to 4

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

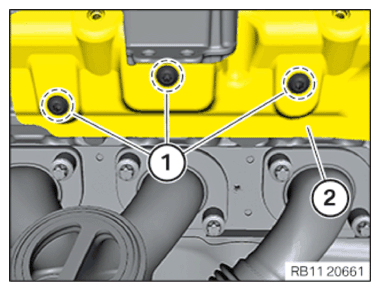

Position the heat shield (2) .
Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Heat protection plate
M6x12 screw Replace screw.	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
