Installing mount for DME master control module support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

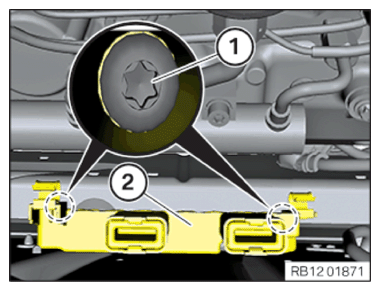

Position mount for DME master control module (2) .

Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Mount for DME master control module
M6x13 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

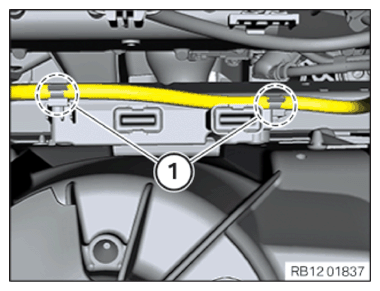

Clip positive battery cable in at holders (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
