Install the cover of the steering assembly on the right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the cover of the steering assembly
NOTE:

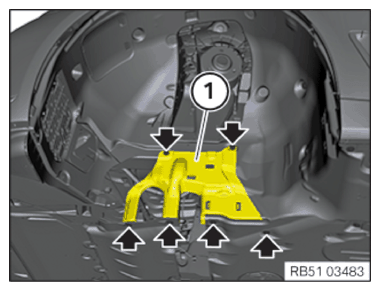

To provide a better overview: Schematic diagram with partially hidden components.
- Insert the cover (1).
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Cover, steering unit | ||
| screw | Tightening torque | 3 Nm |
