Install sliding blocks of bank 1
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

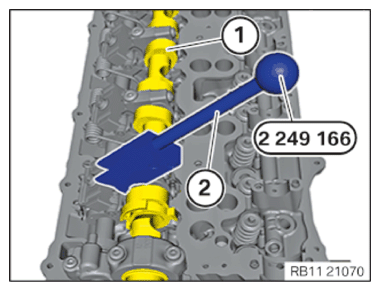

- Position the special tool 2 249 166 on the intake camshaft (1) in the sliding block (2) area.
- Remove the oil and dirt from the sliding block (3) .

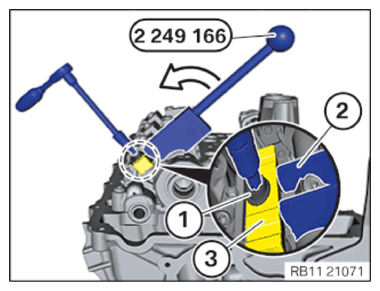

- Position the sliding block (3) and abut with the screw (1) .
- Preload the sliding block (3) with the special tool 2 249 166 (2) in direction of arrow.
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION
Sliding block on cylinder head Screw M7x35 10.9 Tightening torque 20.5 Nm - Relieve the special tool 2 249 166 (1) and feed it out of the camshaft (2) and place aside.
- Repeat the step for all the gates.
