Install both left VANOS adjusters (cylinder head installation cylinder bank 2)
Installing the special tool to secure the camshafts of cylinder bank 2
Check

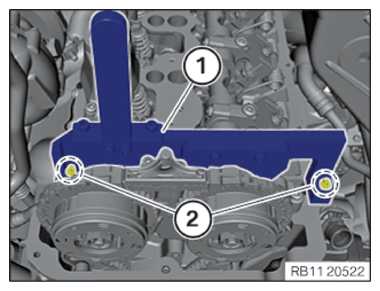

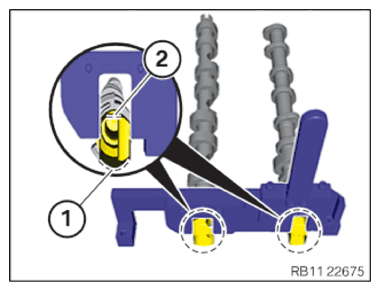

- Position the special tool 2 249 117 (1) on the camshafts of cylinder bank 2.
- Check if the camshafts can be fastened with the special tool 2 249 117 (1) .
- Check if the special tool 2 249 117 can be brought in contact with the cylinder head using the two screws of the cylinder head cover (2) .
Result
» The camshafts can be fastened.
Measure
- Loosen screws (2) .
Remove the special tool 2 249 117 (1) .
Continue the repair in the next step.
Result
» The camshafts cannot be fastened.
Measure
- Adjust the timings of cylinder bank 2.
- The installation position of the VANOS adjusters must be observed in every case.

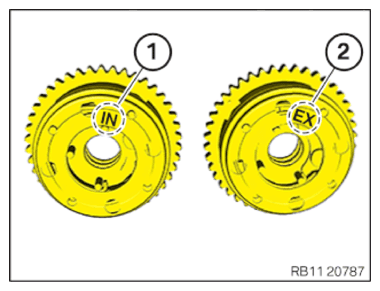

IN is the intake adjuster (1) .
EX is the exhaust camshaft adjuster (2) .
- Replacement:
Replace VANOS adjusters.
Parts: VANOS adjusters

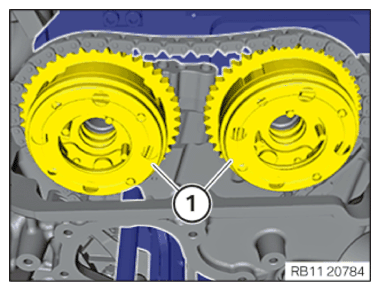

- Thread VANOS adjusters (1)
in and position.
- Replacement: Replace VANOS central valves.
Parts: VANOS central valves

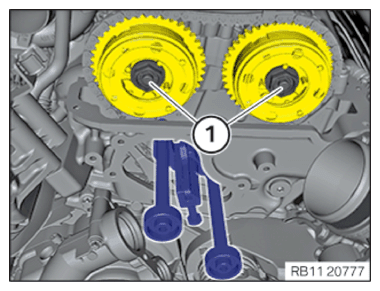

- Position VANOS central valves (1) .
- Tighten VANOS central valves (1) hand-tight.
Installing the slide rail of cylinder bank 2 (removal/installation/replacement of the VANOS adjuster)

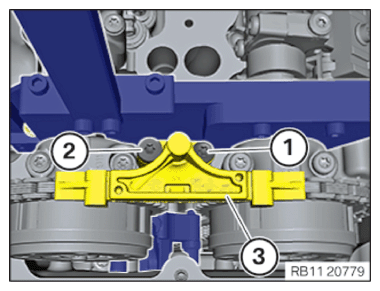

- Position the slide rail of cylinder bank 2 (3) .
- Tighten down screw (2)
.TIGHTENING TORQUES SPECIFICATION
Flat-head screw to the slide rail Flat-head screw
M6x67Tightening torque 10 Nm - Tighten down screw (1) .
| Collar screw to the slide rail | ||
| Collar screw M6x48 | Tightening torque | 10 Nm |
Preloading the timing chain of cylinder bank 2
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.
- Always turn the engine with the chain tensioner or the special tool.

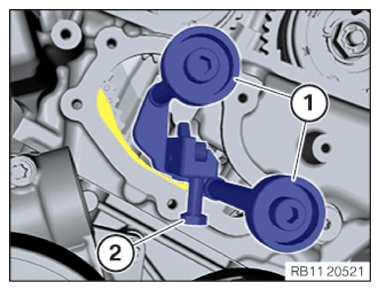

- Position the special tool 2 249 162 on the cylinder head and apply the screws (1) hand-tight.
- Exchange the screw (2) on the special tool 2 249 162
with an (M8x15) hexagon screw.

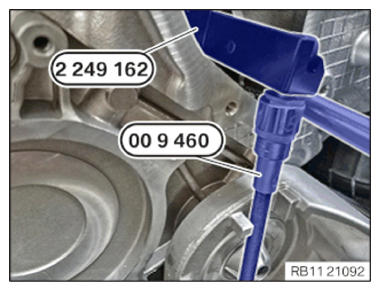

- Pretension special tool 2 249 162 using special tool 0 496 778 (00 9 460) at 0.6 Nm.
The flexible shaft on the special tool 0 496 778 (00 9 460) must not touch any other components, as the torque value will be falsified.
| Preload timing chain | ||
| tightening torque | 0.6 Nm | |

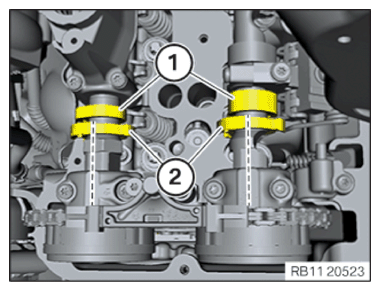

- Make straight marks on the VANOS central valves (1)
and the VANOS adjusters (2)
in the area of the hexagon head.
The angle must be 60°.

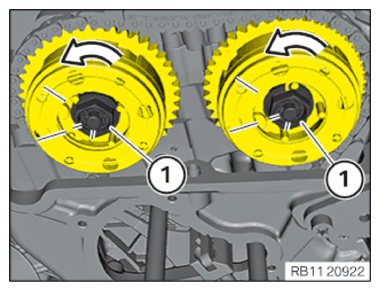

- Release the VANOS central valves (1)
in the area of the hexagon head in a counterclockwise direction until the upper mark of the VANOS central valve matches with the lower mark.
The rotational angle is 60°.
- Turn the engine counter-clockwise by 90° at central bolt.
Make sure that the special tools (1) 0 493 882 (11 9 190) and 0 496 366 (11 8 570) (2) do not collide with other components .
- Remove the special tool 0 496 366 (11 8 570) (2)
.
- Position the special tool (1) 0 493 882 (11 9 190) in the recess on the engine block .

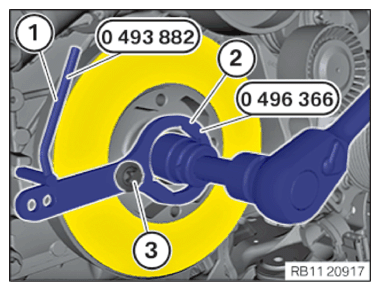

- Turn the engine on the central bolt clockwise until the special tool 0 493 882 (11 9 190) (1) lies against special tool 0 496 366 (11 8 570) (2) .
- Tighten special tool 0 496 366 (11 8 570) (2) hand-tight to the vibration absorber with a screw of the belt pulley (3) .
- Remove the special tool (1) 0 493 882 (11 9 190) .
Checking the preload of the timing chain for cylinder bank 2
- Check the preload on the special tool 2 249 162
with the special tool 0 496 778 (00 9 460)
with 0.6 Nm.
The flexible shaft on the special tool 0 496 778 (00 9 460) must not touch any other components, as the torque value will be falsified.
| Preload timing chain | ||
| tightening torque | 0.6 Nm | |
- Tighten VANOS central valves (1)
.TIGHTENING TORQUES SPECIFICATION
VANOS central valve initial torque VANOS central valve Joining torque 5 Nm - Turn engine on the central bolt until the special tool is aligned with the struts on the engine block.

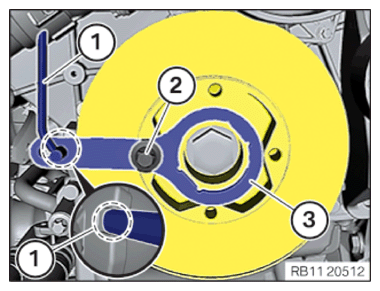

- The special tool 0 496 366 (11 8 570) (3) must be fastened to the vibration absorber with a screw from the belt pulley (2) .
- Slide the crankshaft in the installation position with the special tool 0 493 882 (11 9 190) (1)
on the bars and fix it.
- Tighten VANOS central valves (1)
.TIGHTENING TORQUES SPECIFICATION
VANOS central valve second tightening VANOS central valve Snug torque 1 30 Nm Snug torque 2 50 Nm - Position special tool 0 490 504 (00 9 120) (1)

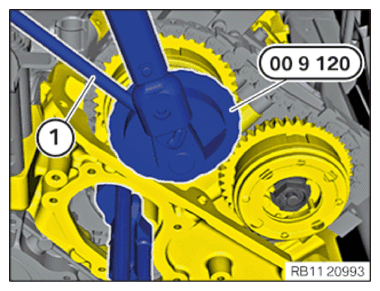

on the VANOS exhaust central valve.
The magnetic foot of the special tool 0 490 504 (00 9 120) must be attached to a magnetic component in the engine compartment.
- The flexible element of the special tool 0 490 504 (00 9 120)
(1) may not collide with other components
.

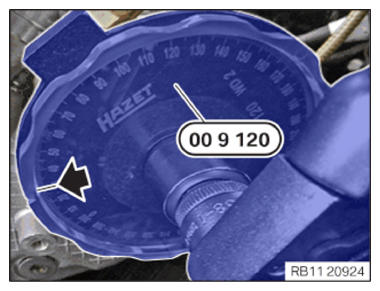

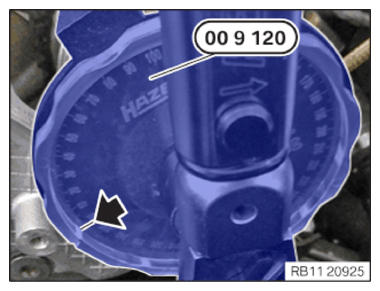

- Set the angle of rotation on the special tool 0 490 504 (00 9 120) to zero.
- Tighten VANOS central intake valve until the needle on the special tool 0 490 504 (00 9 120)
is at 30°.TIGHTENING TORQUES SPECIFICATION

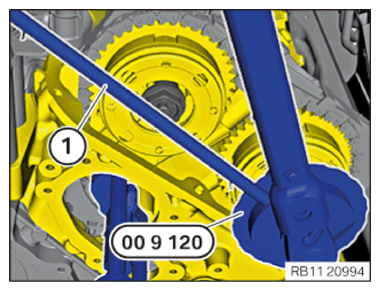

VANOS central valve third tightening VANOS central valve Angle of rotation 30° - Position special tool 0 490 504 (00 9 120) (1)
on the VANOS central intake valve.
The magnetic foot of the special tool 0 490 504 (00 9 120) must be attached to a magnetic component in the engine compartment.
- The flexible element of the special tool 0 490 504 (00 9 120)
(1) may not collide with other components
.
- Set the angle of rotation on the special tool 0 490 504 (00 9 120) to zero.
- Tighten VANOS central intake valve until the needle on the special tool 0 490 504 (00 9 120)
is at 30°.TIGHTENING TORQUES SPECIFICATION
VANOS central valve third tightening VANOS central valve Angle of rotation 30° - Turn the engine clockwise at the central bolt by 2 crankshaft revolutions until the installation position (MP) (1)
of the vibration absorber (1)
aligns with the bridges of the engine block.
- Check the camshaft positions of bank 1.
The cams (1) must be in the position shown.
Increment wheels (2) must form a straight line to the exhaust camshaft bearing cap and the intake camshaft bearing cap.
NOTE: Description is for right component only. The procedure on the left side is identical.NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Ensure that the ground surfaces of camshafts (1)
point up.
- Make sure that the rounded surfaces (1) point downwards to the cylinder head.
- Check and evaluate the timing once again.
Remove the special tools to disconnect the crankshaft
- Remove special tool 0 493 882 (11 9 190) (1) .
- Release the screw (2) of the belt pulley.
- Remove special tool 0 496 366 (11 8 570) (3) .
Removing special tool for fixing camshafts in position on bank 2
- Loosen screws (2) .
- Remove the special tool 2 249 117 (1) .

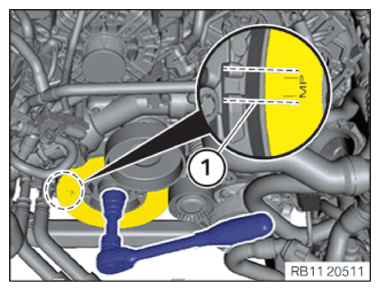

- Turn the engine clockwise at the central bolt by 2 crankshaft revolutions until the installation position (MP) (1) of the vibration absorber (1) aligns with the bridges of the engine block.
Fixing the engine in the installation position on cylinder 1 (set valve timings)

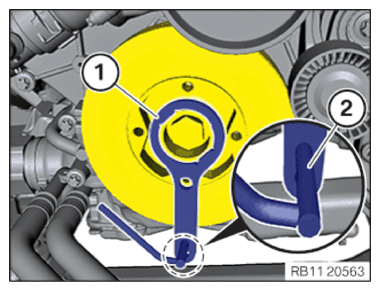

- Position special tool 0 496 366 (11 8 570) (3) on the vibration absorber.
- Position special tool 0 493 882 (11 9 190) (1)
in special tool 0 496 366 (11 8 570)
.
The special tool 0 493 882 (11 9 190) (1) must not be inserted very far as it may collide with other components while turning the crankshaft.
- Position reversible ratchet.
- Rotate engine on the central bolt until the special tool lines up with the engine block marks.
- Hand-tighten the special tool 0 496 366 (11 8 570) (3) with a screw (2) of the belt pulley on the vibration absorber.
- Slide the crankshaft in the installation position with the special tool 0 493 882 (11 9 190) (1) at the marks and fix it.
Check
- Position special tool 2 249 117 (1) on the camshafts of cylinder bank 2.
- Check whether the camshafts can be fixed with the special tool 2 249 117 (1) .
- Check if the special tool 2 249 117 can be brought in contact with the cylinder head using the two screws of the cylinder head cover (2) .
Result
» The camshafts can be fastened.
Measure
- Loosen screws (2) .
Remove the special tool 2 249 117 (1) .
Continue the repair in the next step.
Result
» The camshafts cannot be fastened.
Measure
- Adjust the timings of cylinder bank 2.
