If necessary: Replacing the gas pressure springs for hood

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Replace both gas pressure springs for hood with separate invoicing .

CAUTION: Shutting hood or trunk lid .
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

NOTE: TECHNICAL INFORMATION
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING BALL SOCKETS WITH CLIP .

NOTE: Description is for left component only. Procedure on the right side is identical

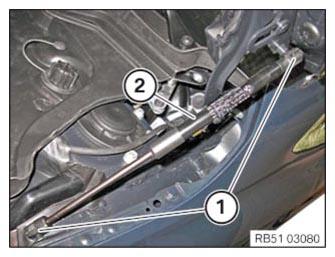

Slide the locking springs (1) up to the end of the gas pressure spring for hood (2) and remove the gas pressure spring for hood (2) from the ball head.

Courtesy of BMW OF NORTH AMERICA, INC.
