Fill fuel tank

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

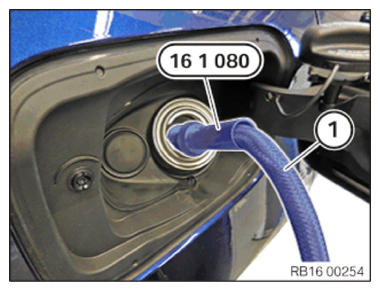

Insert special tool 0 495 588 (16 1 080) into fuel filler neck.
Special tool 0 495 588 (16 1 080) has two different diameters: for gasoline/diesel fuels.
Slide the suction hose (1) of the extractor unit approximately 40 cm into the fuel filler neck. If necessary, slightly turn the suction hose.
Fill fuel from suction extractor unit.
After completing the work and before starting the engine for the first time: Fill the fuel tank via the fuel filler neck with a minimum of 5 l of fuel.
