Fastening the upper heat shield
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

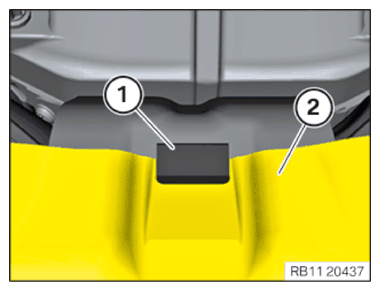

- Engage the top heat shield (2)
in the clamp (1)
on the cowl side.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

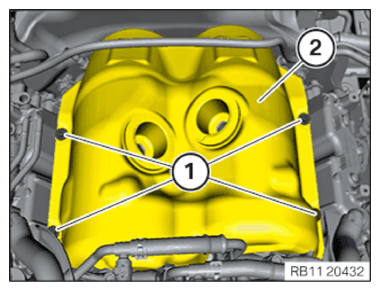

- Position the top heat shield (2)
.
- Tighten down screws (1)
.
TIGHTENING TORQUES SPECIFICATION
| Heat shield, top |
| M6x16 screw |
Tightening torque |
8 Nm |
