Fasten the front right spring strut

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Attach the front spring strut

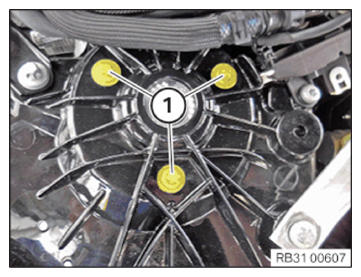

Position the spring strut on the strut-tower.
Replace screws (1).
Parts: Screws
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Front spring strut support bearing to body
M8 Replace screws.	Tightening torque	34 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
