Fasten air conditioning compressor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

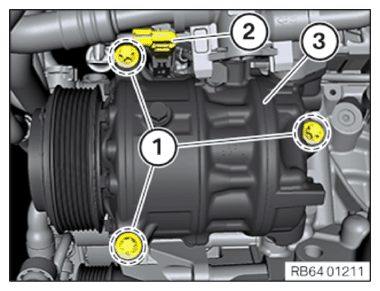

- Position the air conditioning compressor (3) .
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Air conditioning compressor to holder/engine M8 tightening torque 22 Nm - Connect connectors (2) and lock.

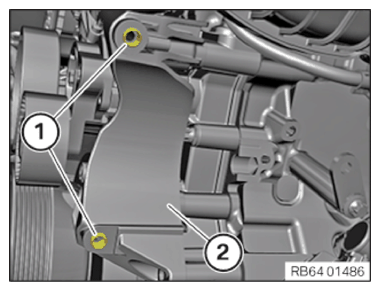

- Centering sleeves (1)
on bearing bracket (2)
for the air conditioning compressor must not be damaged or missing. Replace the centering sleeves where required.
- Position the air conditioning compressor (2) on the bearing bracket.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Air conditioning compressor to holder/engine | ||
| M8 | tightening torque | 22 Nm |
