Disconnecting the exhaust system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

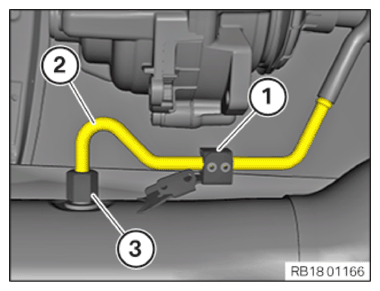

- Loosen union nut (3) .
- Unclip the pressure line (2)
from the holder (1)
.

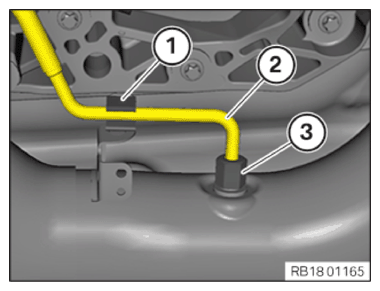

- Loosen union nut (3) .
- Unclip the pressure line (2)
from the holder (1)
.

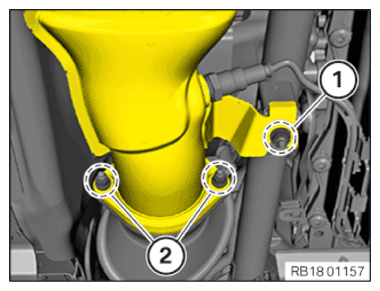

- Release nut (1) .
- Release nuts (2)
.
- Secure the exhaust system from falling down with a transmission jack.

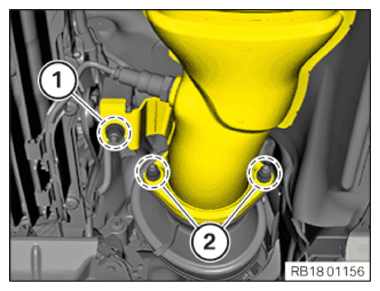

- Release nut (1) .
- Release nuts (2) .
- Lower the exhaust system.
- Slide the exhaust system downwards.
