Disconnect delivery unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Working on fuel system.
Risk of fire! Danger of explosion!

When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
No fire, sparks, open flames or smoking.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

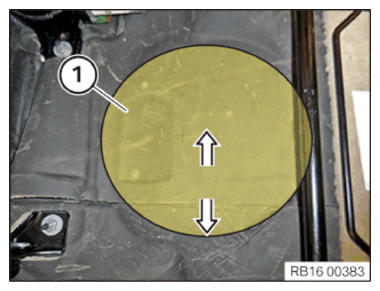

Open up the floor trims in the area (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

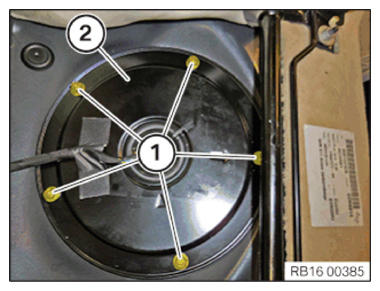

Loosen plastic nuts (1) .
Open the cover (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

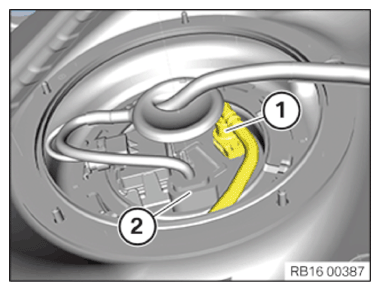

Unlock and detach snap fastener (1) .
Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
