Connecting the exhaust system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

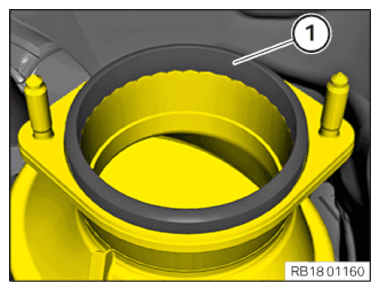

- Replace the seals (1)
.
Parts: Seals
- Position exhaust system.

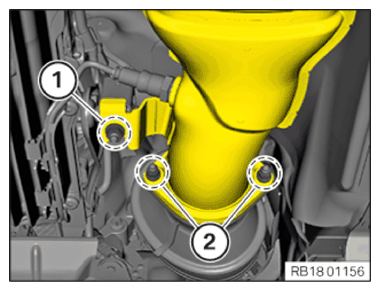

- Replace nut (1)
.
Parts: Nut
- Tighten nut (1)
.TIGHTENING TORQUES SPECIFICATION
Exhaust bracket to transmission Nut M8
Replace nuts.Tightening torque 19 Nm - Replace nuts (2)
.
Parts: Nuts
- Tighten nuts (2)
.TIGHTENING TORQUES SPECIFICATION
Exhaust system to catalytic converter Nut M8

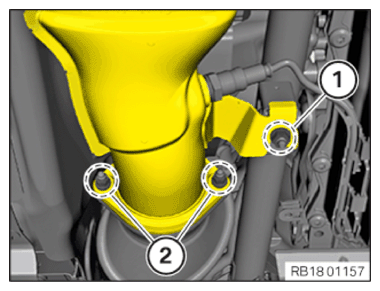

Replace nuts.Tightening torque 10 Nm Tightening torque 28 Nm - Replace nut (1)
.
Parts: Nut
- Tighten nut (1)
.TIGHTENING TORQUES SPECIFICATION
Exhaust bracket to transmission Nut M8
Replace nuts.Tightening torque 19 Nm - Replace nuts (2)
.
Parts: Nuts
- Tighten nuts (2)
.TIGHTENING TORQUES SPECIFICATION
Exhaust system to catalytic converter Nut M8

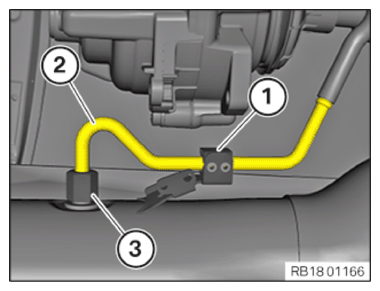

Replace nuts.Tightening torque 10 Nm Tightening torque 28 Nm - Clip the pressure line (2) into the holder (1) .
- Tighten the union nuts (3)
.TIGHTENING TORQUES SPECIFICATION

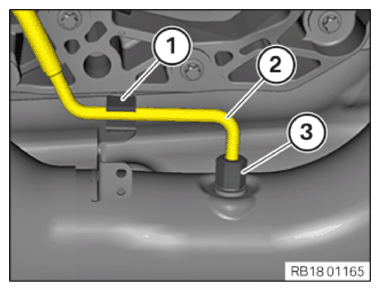

Pressure line union nut Pressure line union nut Tightening torque 40 Nm - Clip the pressure line (2) into the holder (1) .
- Tighten the union nuts (3) .
TIGHTENING TORQUES SPECIFICATION
| Pressure line union nut | ||
| Pressure line union nut | Tightening torque | 40 Nm |
