Connect delivery unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

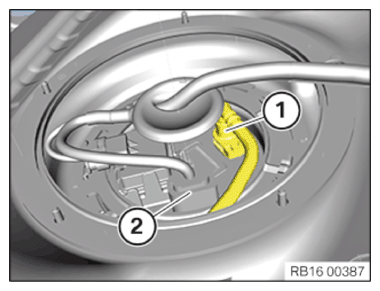

- Position snap fastener (1) and lock.
- Connect connectors (2) and lock.
- Check that the fuel lines are properly locked by pulling.
You must ensure that the fuel lines are locked in place correctly.

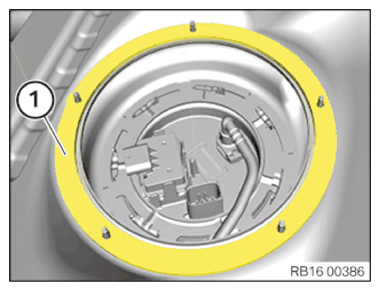

- Replace the seal (1).
Parts: Gasket
- Mount the cover (2).
The arrow must point in the direction of travel.

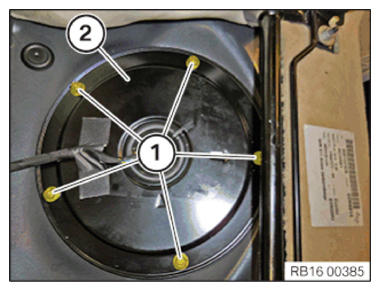

- Replace plastic nuts (1).
Parts: Plastic nuts
- Insert plastic nuts (1) and tighten.TIGHTENING TORQUES SPECIFICATION

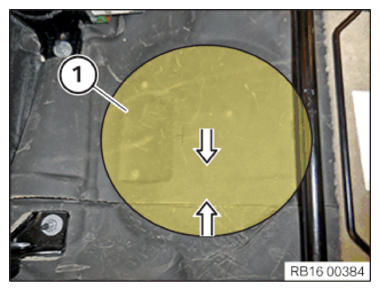

Cover of sensor opening on body Replace plastic nut. tightening torque 3 Nm - Close the floor trim in the area (1) in the arrow direction.
