Close the locking ring
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
All the new delivery units are delivered in equipment specification with parked-car heating.
For these vehicles, the connection on the flange lid must be closed with a lock.
The lock must be ordered separately, refer to applicable BMW parts catalogue.
All the new delivery units are delivered in equipment specification with parked-car heating.
For these vehicles, the connection on the flange lid must be closed with a lock.
The lock must be ordered separately, refer to applicable BMW parts catalogue.

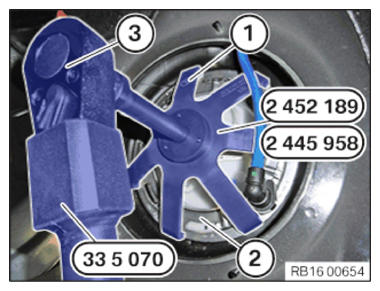

- Set special tool 2 452 189 (1) on locking ring (2).
- Connect special tool 0 495 554 (33 5 070) using a reversible ratchet head of 1/2 inch (3) and set it on special tool 2 452 189 .
- Tighten locking ring (2) in clockwise direction.

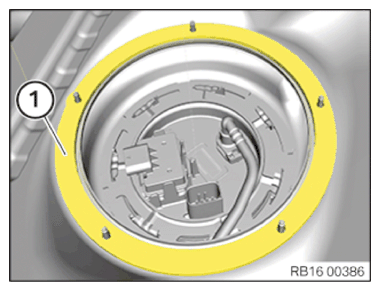

- Make sure that the locking ring to the fuel tank is engaged correctly.
- Check the locking mechanisms of the snap fastener for damage and replace if necessary.

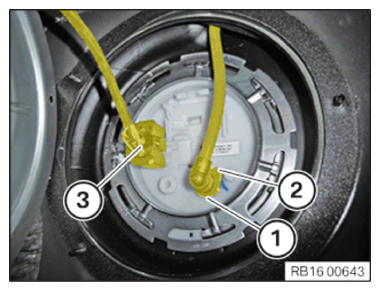

- Ensure that the snap-in lugs (1) and (2) engage correctly.
- Mount and lock the snap fastener.
The snap fastener must be seen and heard to engage.
- Ensure correct locking of the snap fastener by means of a tensile sample.
- Connect connector (3).
- Replace the seal (1).
Parts: Seal
- Mount the cover (2).
The arrow must point in the direction of travel.
- Replace plastic nuts.
Parts: Plastic nuts

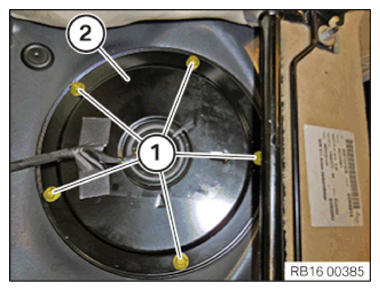

- Insert plastic nuts (1) and tighten.TIGHTENING TORQUES SPECIFICATION

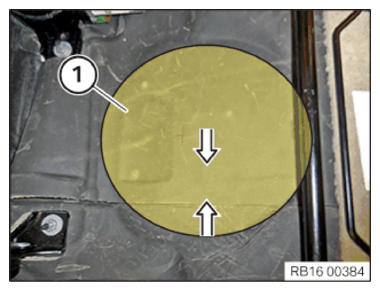

Cover of sensor opening on body Replace plastic nut. tightening torque 3 Nm - Close the floor trim in the area (1) in the arrow direction.
