Checking the VANOS adjuster of cylinder bank 1

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Check

Check the lock of intake adjuster and exhaust camshaft adjuster.

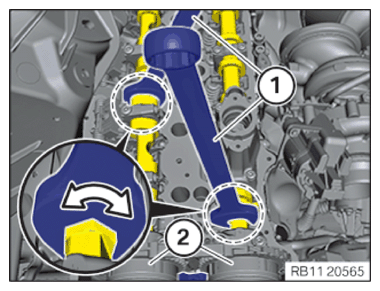

Position the open-end wrench (1) on the hexagon of the camshafts.
Move the open-end wrench back and forth a little in the arrow direction.

The camshafts must be connected with the VANOS adjusters (2) with frictional connections.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Camshafts are connected to the VANOS adjusters (2) with frictional connections.

Measure

Continue the repair with the next step.

Result

» If there is no frictional connection, the relevant adjuster must be replaced.

Measure

Replace the affected VANOS adjuster.

Measure

Check timing again.
