Attaching the wiring harness section for the ignition system of cylinder bank 2

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

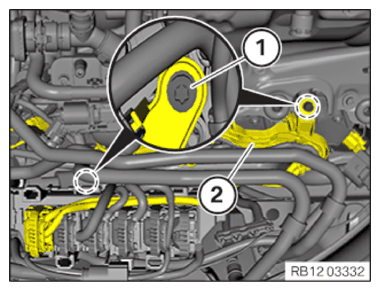

Position the wiring harness section for the ignition system (2) .
Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Wiring harness to cylinder head cover
M6x16 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
