Attaching coolant expansion tank
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Injectors contaminated with coolant.
Damage to and failure of injectors that were coated with coolant for an extended period.
Injectors contaminated with coolant.
Damage to and failure of injectors that were coated with coolant for an extended period.
- Covering injectors with suitable auxiliary materials before testing or topping up the coolant is mandatory.
- Covering injectors with suitable auxiliary materials before working on the cooling system in the area of the injectors is mandatory.
- If necessary, draw off all of the coolant from the coolant expansion tank.
- Always clean injectors or injector shafts contaminated with coolant (e.g. with compressed air).
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

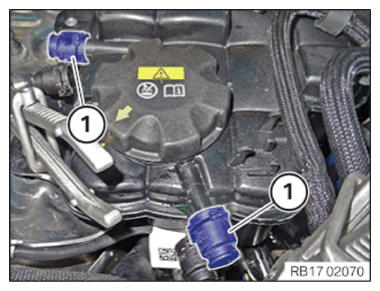

- Remove all the seal plugs (1)
.

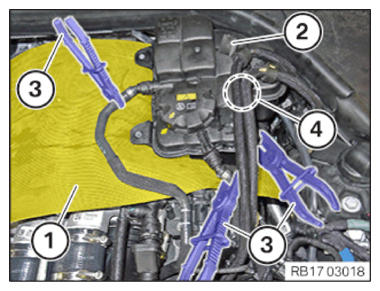

- Position the coolant expansion tank (2) .
- Clip in the fuel lines in the area (4) at the coolant expansion tank (2) .
- Remove clamping pliers (3) .
- Remove the rubber mat (1)
.

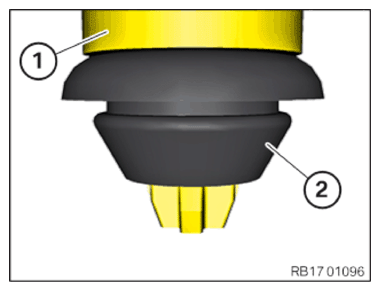

- Feed in the coolant expansion tank (1)
downwards into the decoupling elements (2)
and position it.

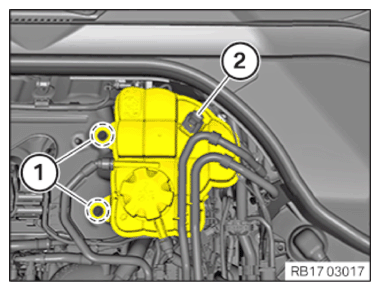

- Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION
Coolant reservoir M6x20 screw Tightening torque 11 Nm - Connect connectors (2)
and lock.

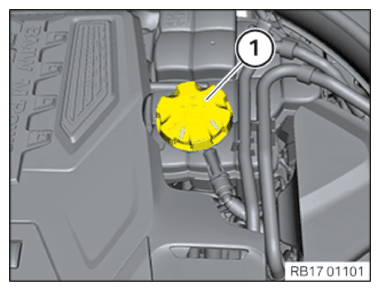

- Remove sealing cap (1) .
- Top up the coolant up to the maximum mark .
- Install the sealing cap (1) .
