Change transfer box oil (ATC 13-1)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

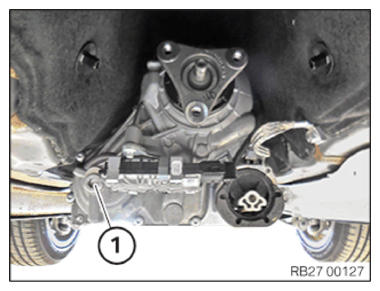

- Open the oil filler plug (1).
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

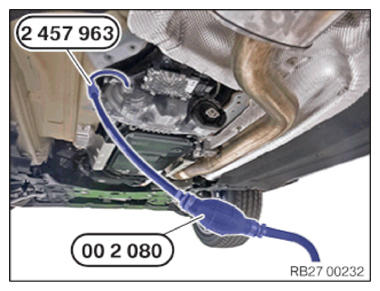

- Vacuum the transmission oil from the transfer box (VTG) using special tool 0 493 337 (00 2 080) and special tool 2 457 963.

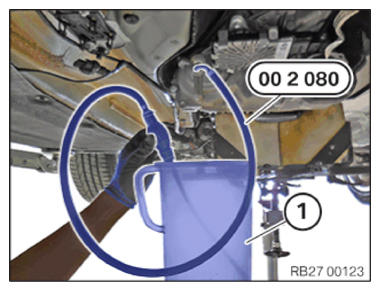

- Fill transmission oil with the special tool 0 493 337 (00 2 080) up to the lower edge of the opening for the oil filler plug.
TECHNICAL DATA SPECIFICATION
| Filling capacity of transfer box | ||
| Transfer-box oil | min. 0.7 | |
- Replace the oil filler plug (1).
Parts: Oil filler plug
- Tighten the oil filler plug (1).
TIGHTENING TORQUES SPECIFICATION
| Oil filler and oil drain plugs | ||
| M22 | Tightening torque | 60 Nm |
Follow-up work
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING HEAT SHIELD .
- Refer to INSTALLING REAR UNDERBODY PROTECTION .
