Installing front brake pads

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Check

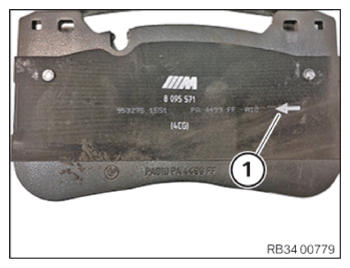

Is there an arrow (1) on the new brake pads for the direction of rotation?

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Yes, an arrow (1) is present.

Measure

Brake pads must be installed in the direction of rotation.
Insert and position the brake pads in the brake caliper.
Place the brake caliper on the stud bolts and position the brake caliper correctly.

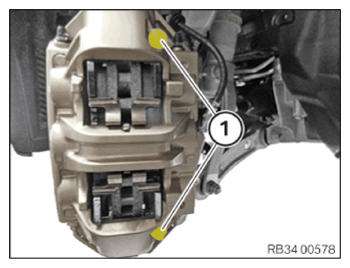

Replace nuts (1).

Parts: Nuts

Install the nuts (1) and tighten.

TIGHTENING TORQUES SPECIFICATION

Brake caliper on stud bolt of the front swivel bearing
M12 Replace nuts.	Tightening torque	95 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

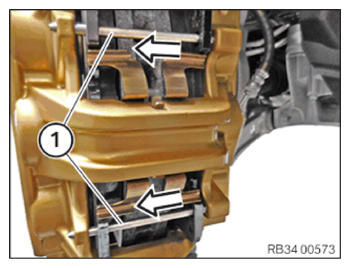

Push the locking pins (1) in the arrow direction up to the stop.

If necessary, press the brake pads against the spring force of the retaining spring.

Courtesy of BMW OF NORTH AMERICA, INC.

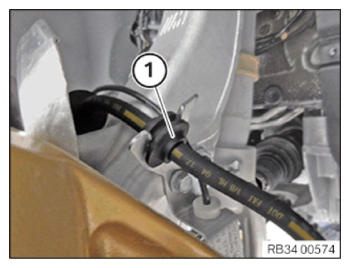

Hook the brake hose (1) into the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up works

Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
Refer to COMMISSIONING OR BEDDING IN (BRAKE) OF NEW BRAKE PADS AND DISCS (HIGH BRAKE) .
Refer to PERFORMING THE CBS RESET .
