Cleaning the brake caliper
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Do not apply brake pad paste to brake pads and guides!
Do not apply brake pad paste to brake pads and guides!

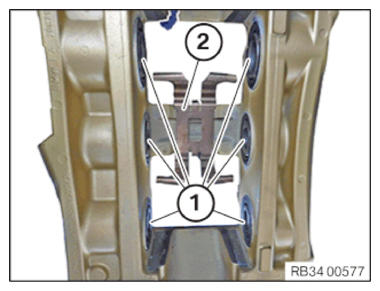

- Clean the contact surfaces (1) of the brake pistons (6 pieces) with brake cleaner.
- Check dust boots for damage; replace if necessary.
- Check the retaining spring (2) for damage and correct fit.
NOTE:
TECHNICAL INFORMATION
Do not apply brake pad paste to brake pads and guides!
Do not apply brake pad paste to brake pads and guides!

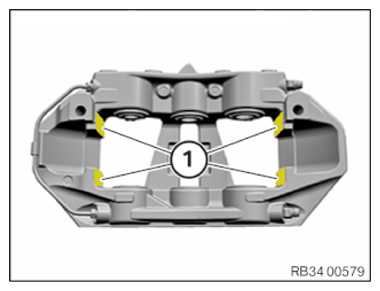

- Clean the contact surfaces (1) for the brake pads on the brake caliper with brake cleaner.
Do not mechanically clean the contact surfaces to prevent damage to the surface coating.
