Removing and installing radiator: Notes

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding. Only carry out repair work on the cooling system after the engine has cooled down.

US cars with M56 engine only:

SULEV (Super ultra-low emissions vehicle):

When replacing the radiator, install Prem-Air radiator only (color: black and marked with sticker)!

Necessary preliminary tasks:

Follow INSTRUCTIONS FOR REPAIR WORK ON COOLING SYSTEM
DRAINING AND ADDING COOLANT
Remove INTAKE FILTER HOUSING
Remove FAN COWL

Pull locking clips (1 and 2) upwards and detach coolant hose from expansion tank/radiator.

Installation:

Check sealing rings. Do not under any circumstances coat sealing rings with antiseize agent before installation.

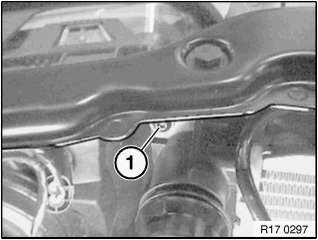

Fig 1: Disassembling Quick-Connect Coupling

Pull locking clip (1) upwards and detach coolant hose from expansion tank.

Installation:

Check sealing rings. Do not under any circumstances coat sealing rings with antiseize agent before installation.

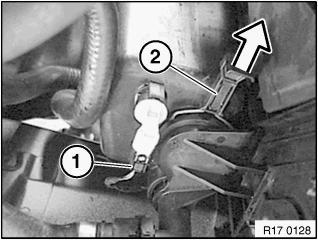

Fig 2: Pulling Locking Clip Upwards And Detaching Coolant Hose From Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection (1) at level sensor.

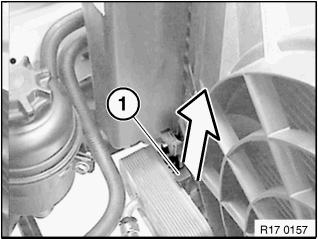

Fig 3: Disconnecting Plug Connection At Level Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

If automatic transmission is fitted:

Pull lock (1) upwards and remove heat exchanger towards rear.

Installation:

Press lock (1) downwards before pushing on heat exchanger. The lock must snap audibly into place when the heat exchanger is forced on.

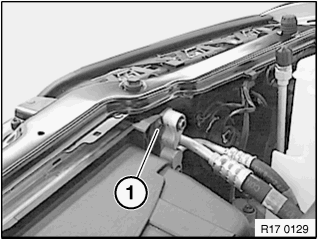

Fig 4: Pulling Lock Upwards And Removing Heat Exchanger Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

If automatic transmission is fitted:

Installation:

Check sealing rings, replace if necessary.

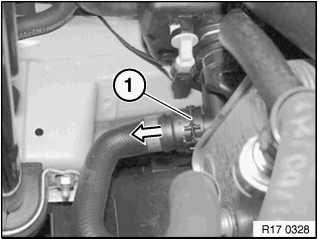

Fig 5: Checking Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Pull locking clip (1) upwards and detach coolant hose from radiator.

Installation:

Check sealing rings. Do not under any circumstances coat sealing rings with antiseize agent before installation.

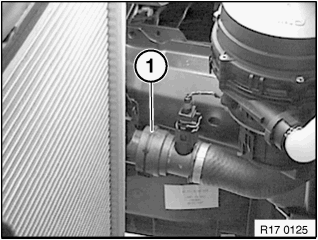

Fig 6: Pulling Locking Clip Upwards And Detach Coolant Hose From Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

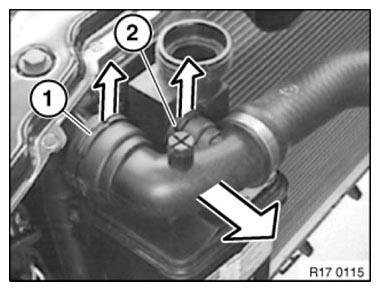

Fig 7: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 8: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lift radiator out of mountings.

Fig 9: Lifting Radiator Out Of Mountings
