Instructions for repair work on cooling system: Notes
WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of scalding. Only carry out repair work on the cooling system after the engine has cooled down.
IMPORTANT:
Wear protective gloves and safety goggles.
IMPORTANT:
Lifetime coolant filling:
Never reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be drained and refilled.
In the case of other removal work involving the draining of part quantities of coolant, replace these quantities which have been drained with new coolant.
IMPORTANT:
Open cooling system only when it has cooled down.
Opening the cooling system while hot can result in air entering the system.
This can cause overheating with permanent damage to the engine.
IMPORTANT:
You must protect the alternator against dirt contamination before carrying out any repair work on the cooling circuit.
Cover alternator with suitable materials.
Failure to comply with this procedure may result in an alternator malfunction.
IMPORTANT:
Do not fill coolant expansion tank over MAX level as overfilling will cause the coolant to overflow. This may give rise to traces of coolant on the expansion tank or in the engine compartment and wrongly suggest possible leaks.
Recycling
Catch and dispose of drained coolant.
Observe country-specific waste disposal regulations.
NOTE:

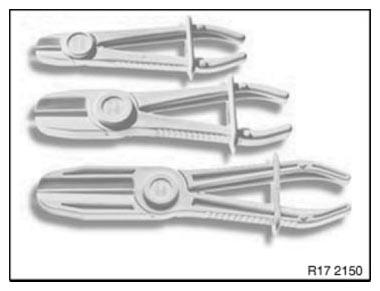

To disconnect coolant hoses, use commercially available disconnect tools such as HAZET brand tools (see table).
| HAZET no.: | Designation |
|---|---|
| 4590-1 | Disconnect-pliers, length (mm): 150 |
| 4590-2 | Disconnect-pliers, length (mm): 180 |
| 4590-3 | Disconnect-pliers, length (mm): 253 |
| 4590 / 2 | Disconnect-plier set |
| 4590 / 3 | Disconnect-plier set |
NOTE:
Tightening torque for hose clamps:
| WAF 5 | 1.0 - 1.5 Nm |
| WAF 6 | 2.5 - 3.5 Nm |
