Multiple Restraint System III (MRS III): Diagnosis

WARNING: This page does not describe the selected car, but rather 151 other vehicles, including the 2006 BMW X5, 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, and 2005 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Diagnosis and troubleshooting of the MRS III system is fault driven and can be accessed using the DIS Tester or MoDiC. The control module performs a self test of the system every time the ignition is switched on (this includes the satellite sensors and seat occupancy sensor). Any faults with the system will cause the warning lamp in the instrument cluster to remain illuminated after the engine is started.

Installation of a new or replacement control module requires ZCS coding also using the DIS or MoDiC.

When servicing or replacing any MRS III components, always follow precautionary measures outlined in the appropriate repair articles. this includes disconnecting the battery prior to any repair or maintenance work being performed.

All airbag components are part number specific by model and require verification in the EPC to ensure the correct component is being installed.

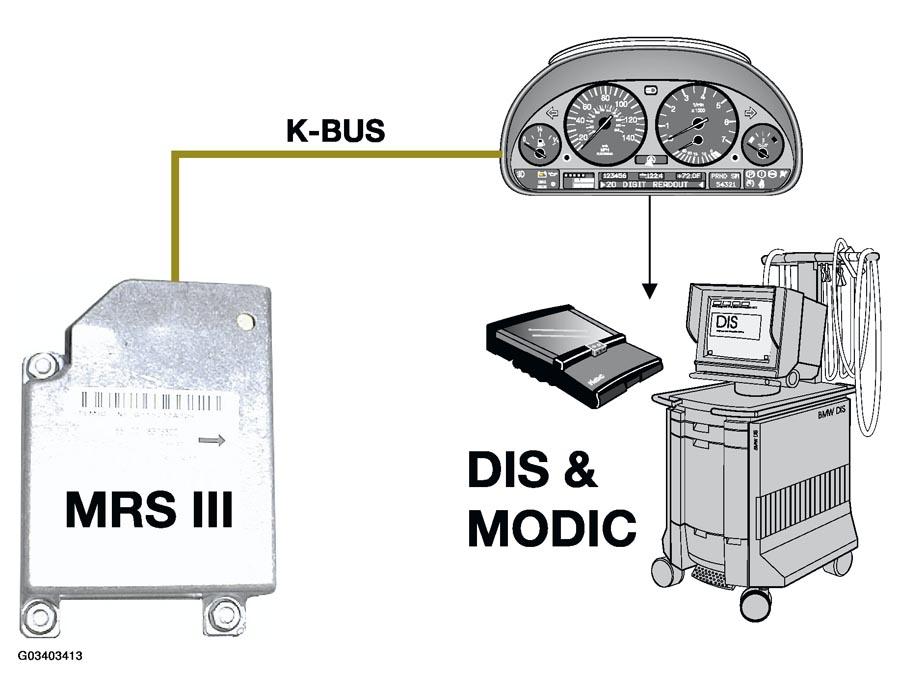

Fig 1: Identifying Airbag Components And DIS Tester

Courtesy of BMW OF NORTH AMERICA, INC.
