Siemens Operation
WARNING: This page does not describe the selected car, but rather 151 other vehicles, including the 2006 BMW X5, 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, and 2005 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The SRS control module and SRS warning lamp receive power when the ignition is switched on (KL R). The control module performs a self check and charges the internal capacitor to approximately 35 volts. The capacitor ensures that enough power will be available for airbag activation. If the self check is "OK", the warning lamp goes out and the system is ready for activation should the need arise.

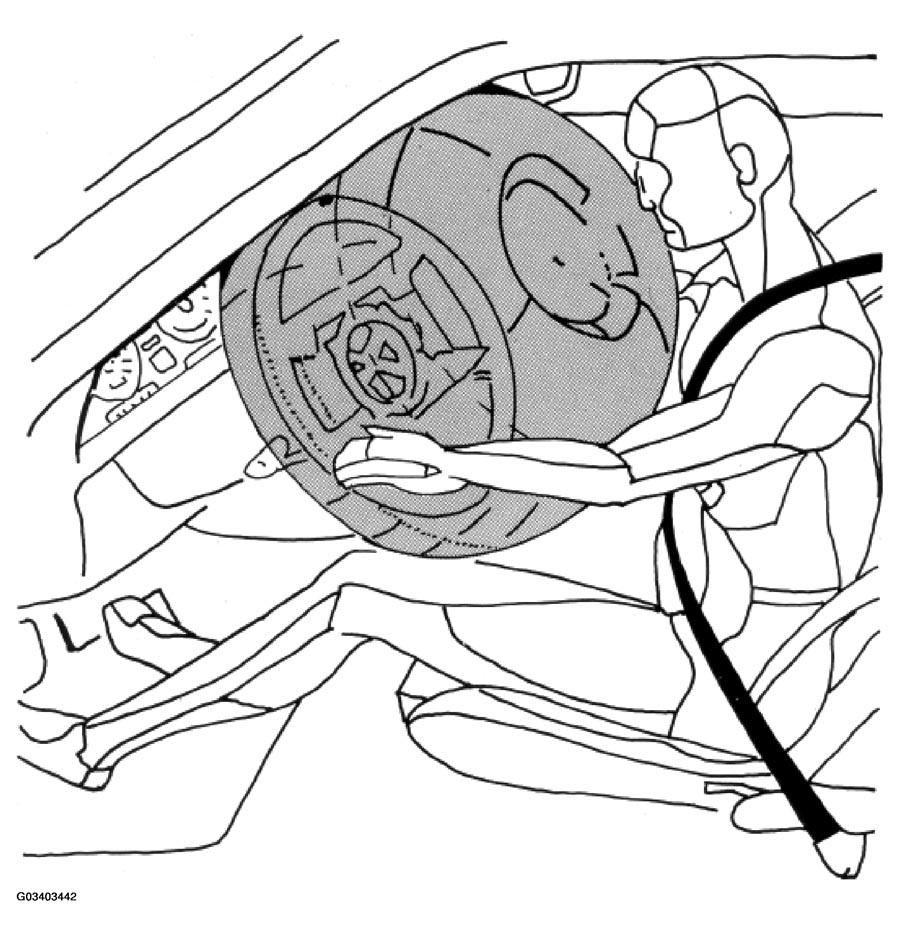

During the instant of activation the capacitor voltage is used to energize the ignition pill of each airbag gas generator. The airbag fills rapidly with a nitrogen gas (N2) supplying the needed margin of safety.
