Rubber Mounts On Control Arms (M3): Removal

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Remove bracket for control arm. See CONTROL ARM BRACKETS .
Press rubber mount out of bracket using special tool (31 2 131/133. See Fig 2.

Fig 1: Locating Rubber Mount Installation

Courtesy of BMW OF NORTH AMERICA, INC.

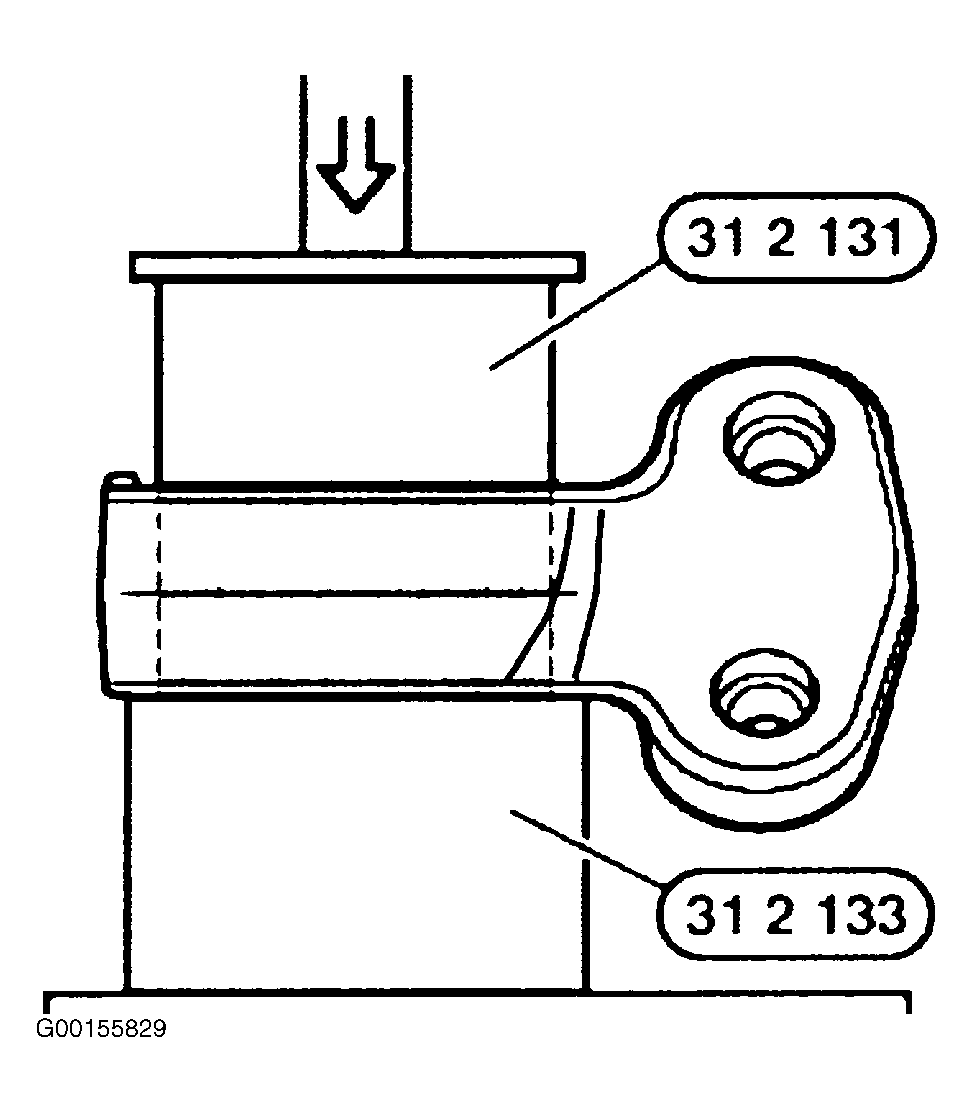

Fig 2: Pressing Out Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
