Rubber Mounts On Control Arms (M3): Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

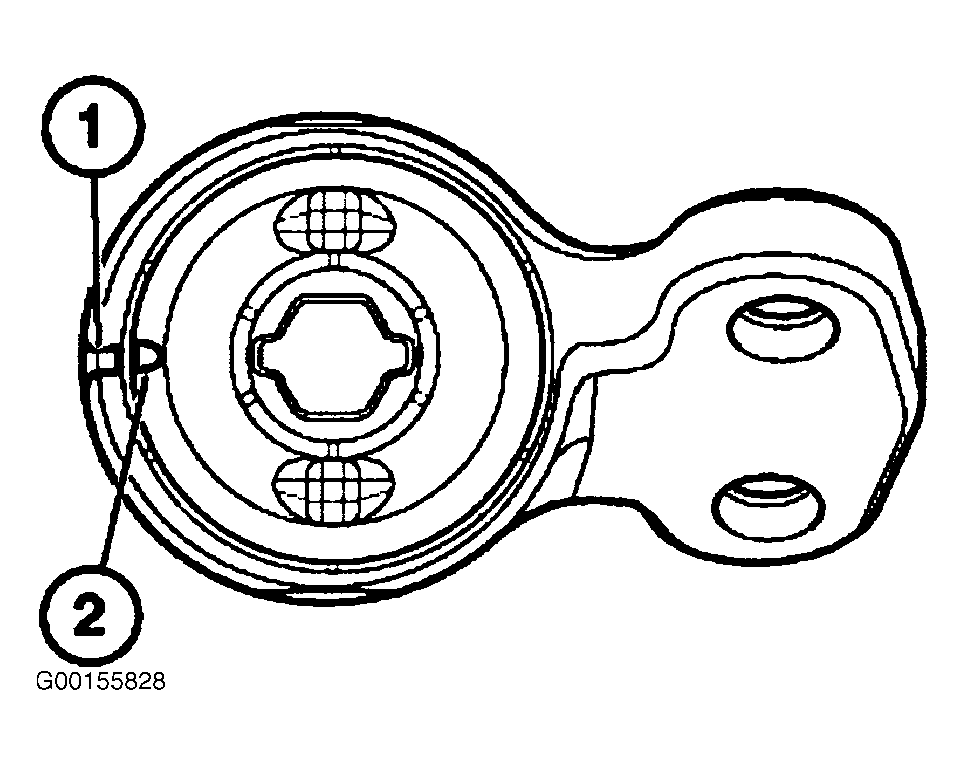

Check installation location. Nub/arrow (2) on rubber mount points to marking (1) on bracket. See Figure.
Remove grease from bracket and rubber mount.

CAUTION: Mark bracket next to marking (1) with a center punch. See Figure.

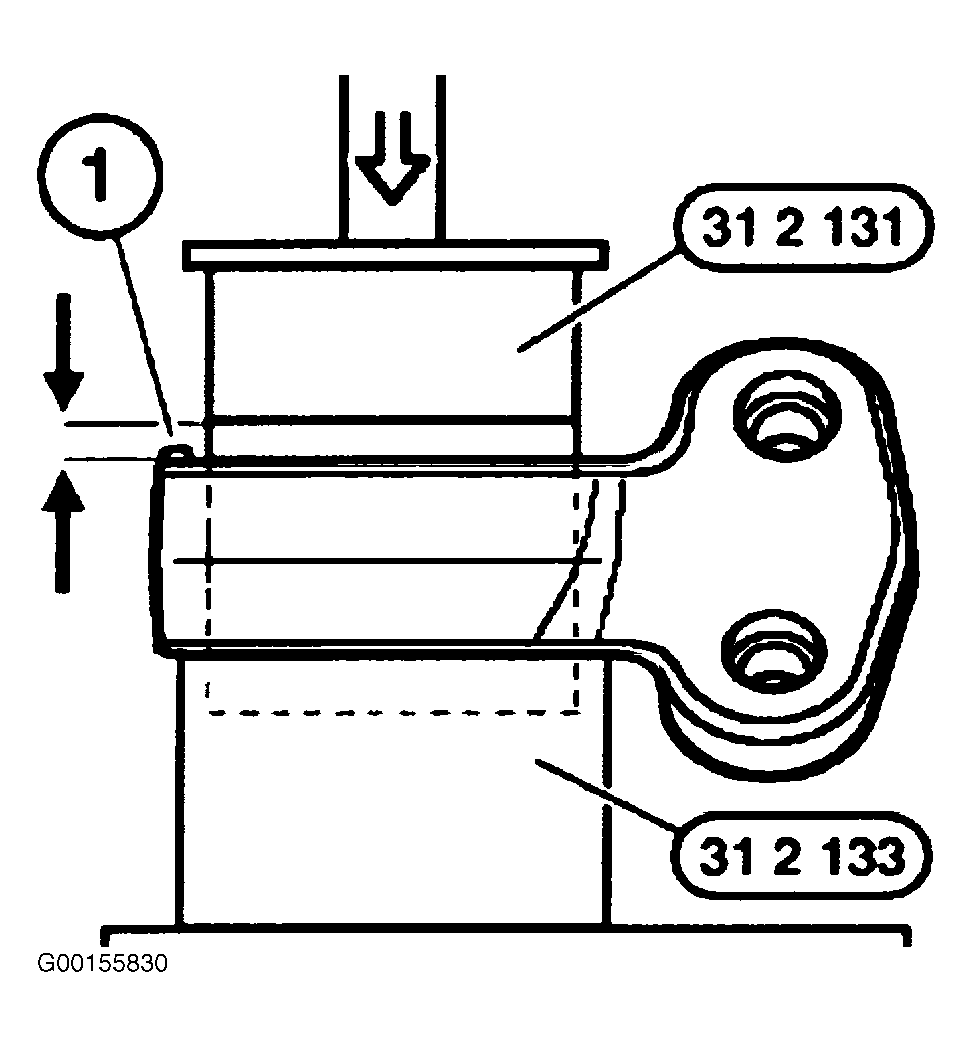

Marking (1) points upwards. Press in rubber mount with special tools (31 2 131/133). Protrusion (A) must be the same on both sides. See Fig 1.
Install bracket for control arm. See CONTROL ARM BRACKETS .

Fig 1: Pressing In Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
