Reinforcement Plate: Removal

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove front underbody protection. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01) .
Unfasten screws (1-3) and remove reinforcement plate. See Fig 1.

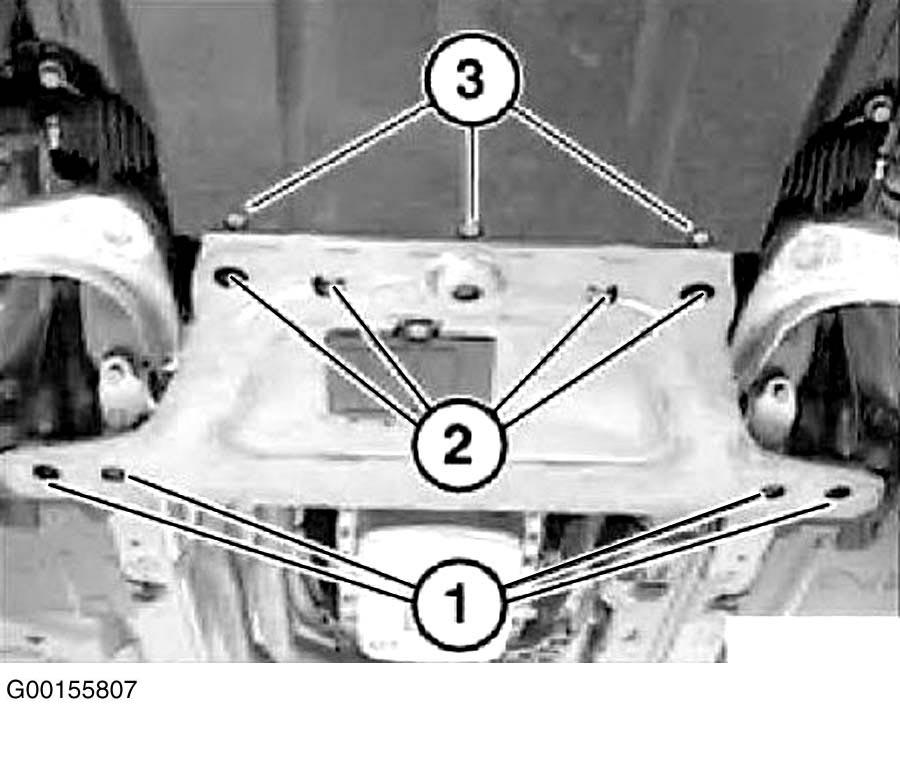

Fig 1: Removing Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.
