Reinforcement Cross Brace: Removal

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

If applicable, unscrew and remove splash guard. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01) .
Unscrew bolts (1, 2) and remove cross brace. See Fig 1.
If necessary, bend heat shield away from reinforcement.

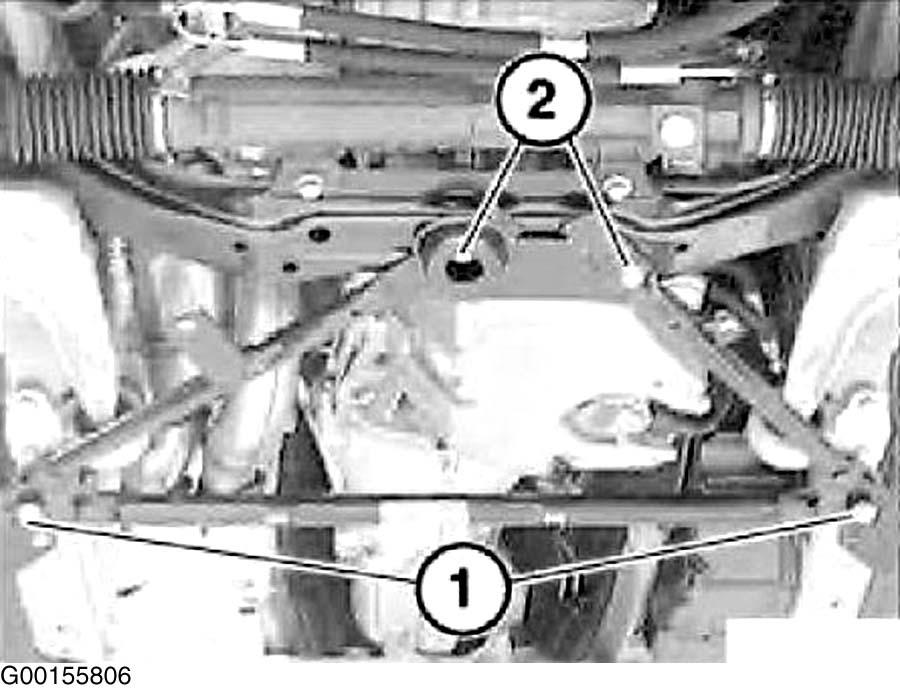

Fig 1: Removing Cross Brace

Courtesy of BMW OF NORTH AMERICA, INC.
