Reinforcement Cross Brace: Installation
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

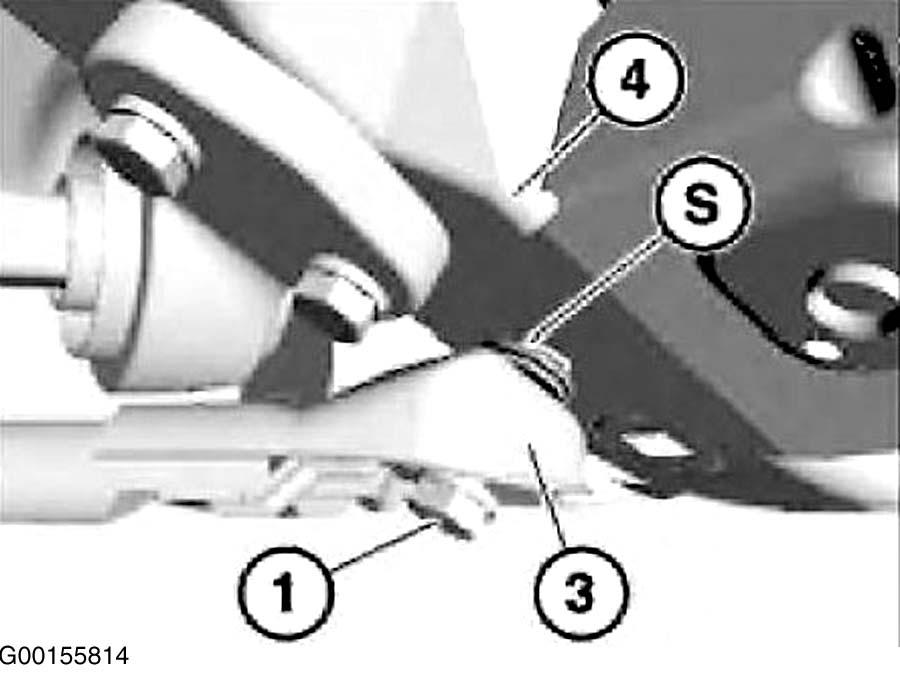

- If 66 mm diameter control arm rubber mounts are fitted, a washer (S) must be fitted at each screw (1) between reinforcement (3) and engine carrier (4). The reinforcement must not rest against the control arm rubber mount or control arm bracket. See Fig 1.
- Tighten to specification. See TORQUE SPECIFICATIONS .
