Removal (M3)
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If a bracket is replaced, a new rubber mount must also be installed on the other side.
- Remove engine underguard and, if necessary, heat shield on right. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01) .
- Remove reinforcement plate. See REINFORCEMENT PLATE .
- Unfasten screws. See Figure.

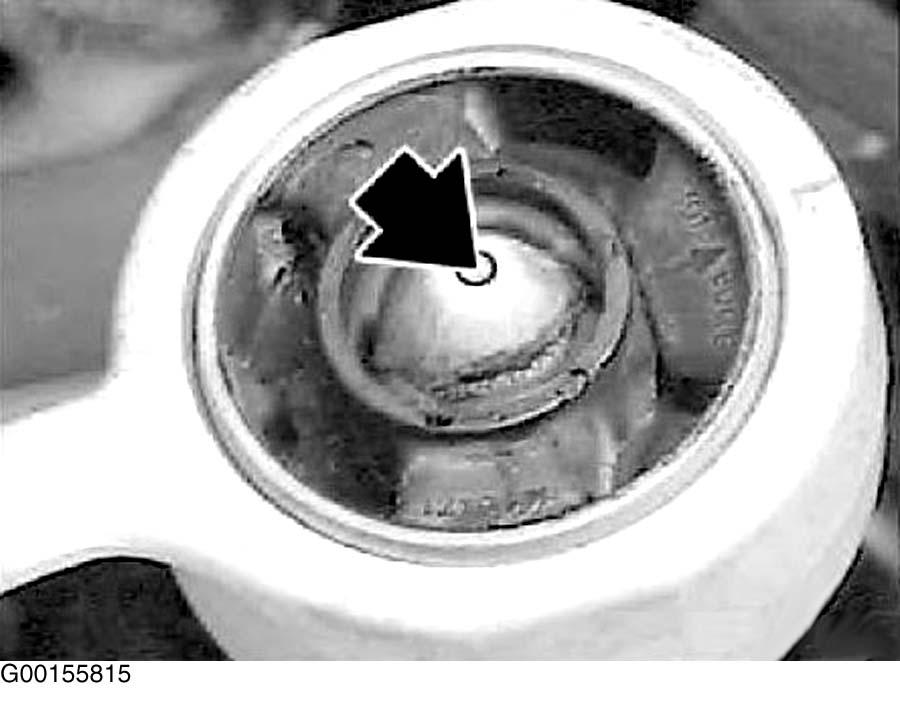

- Punch mark center of control arm. See Figure.
- If necessary, remachine special tool (31 2 151). See Figure.

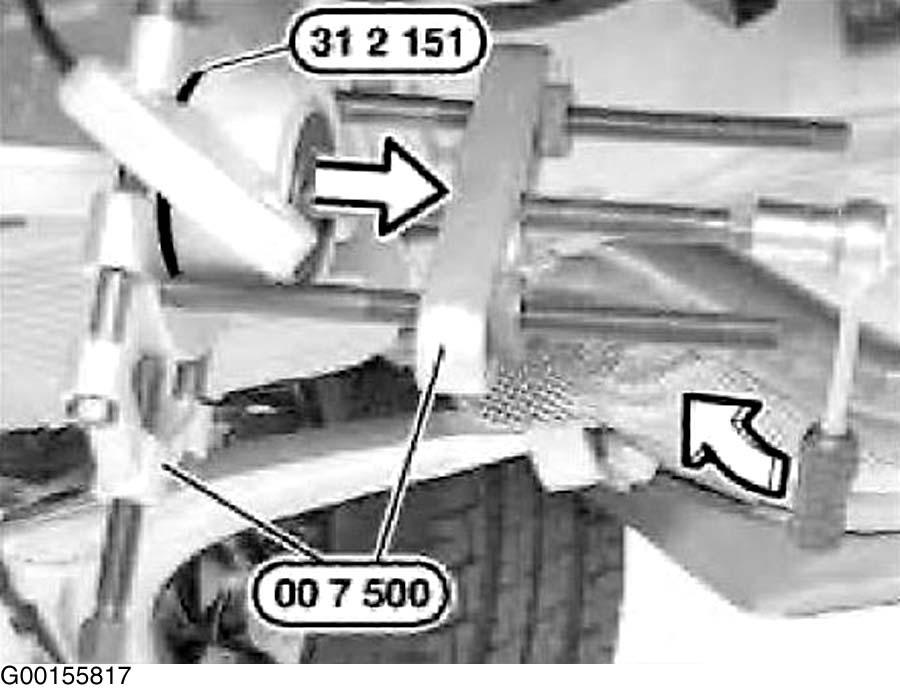

- Detach bracket with special tool (00 7 500/31 2 151) from control arm. See Figure.
