65 52 023 Replacing panel for on-board monitor (control panel, widescreen)

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35...NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove complete on-board monitor (widescreen), refer to 65 52 013 REMOVING AND INSTALLING COMPLETE ON-BOARD MONITOR (WIDESCREEN) .

NOTE: When removing complete on-board monitor (widescreen), disconnect plug connections with trim for on-board monitor extended.

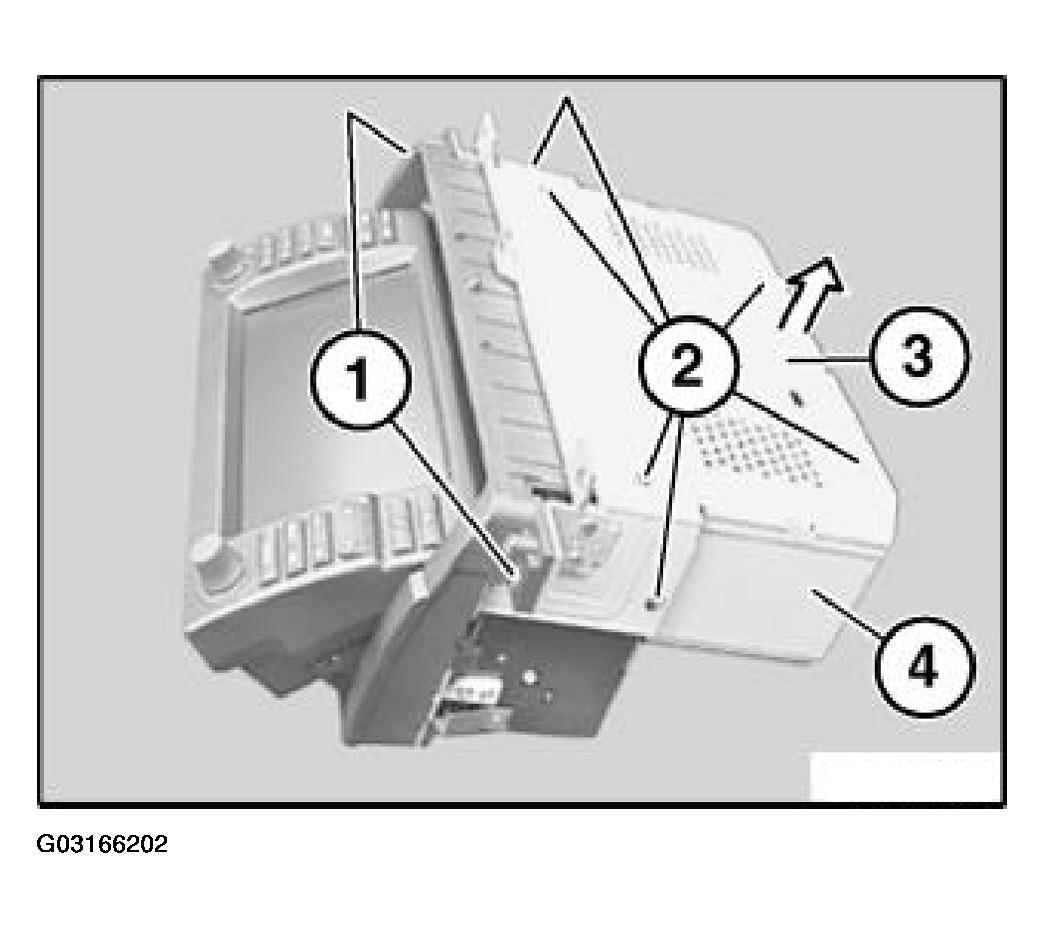

Remove bolts (1) and (2).

Remove upper housing (3) in direction of arrow from housing (4).

Fig 1: Removing Upper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

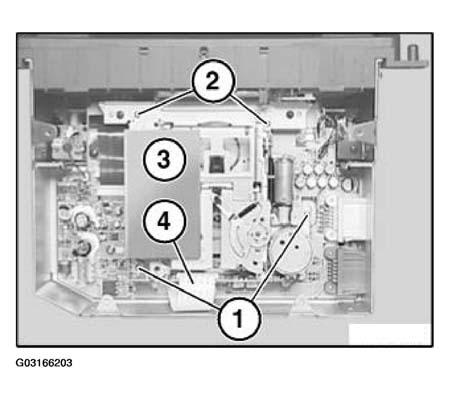

Remove bolts (1) and (2).

Lift out cassette deck (3) and place to one side.

NOTE: Cassette deck (3) is still connected to housing by ribbon cable for cassette deck (4).

Fig 2: Removing Cassette Deck And Place To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

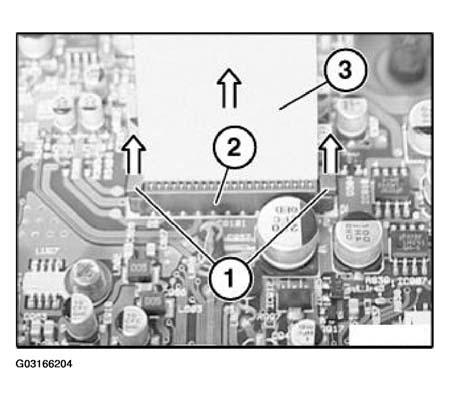

Open catches (1) in direction of arrow.

Feed ribbon cable for cassette deck (3) in direction of arrow from contact terminal (2).

Installation:

Make sure ribbon cable for cassette deck (3) is correctly seated in contact terminal (2).

Fig 3: Identifying Ribbon Cable For Cassette Deck

Courtesy of BMW OF NORTH AMERICA, INC.

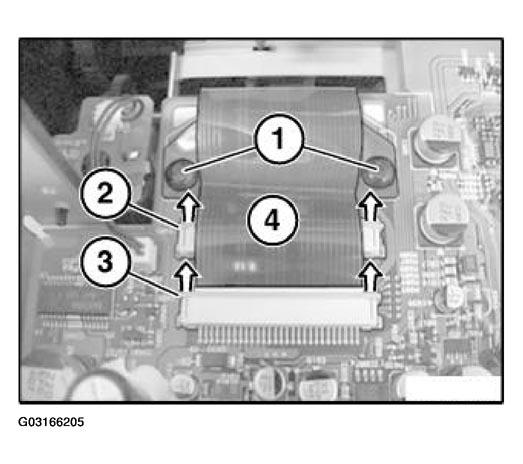

Lever out expansion rivet (1).

Open catches (2) and (3) in direction of arrow.

Fig 4: Identifying Open Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Feed ribbon cables (4) resting on top of each other out of contact terminals.

Installation:

Make sure ribbon cables (4) are correctly seated in associated contact terminals.

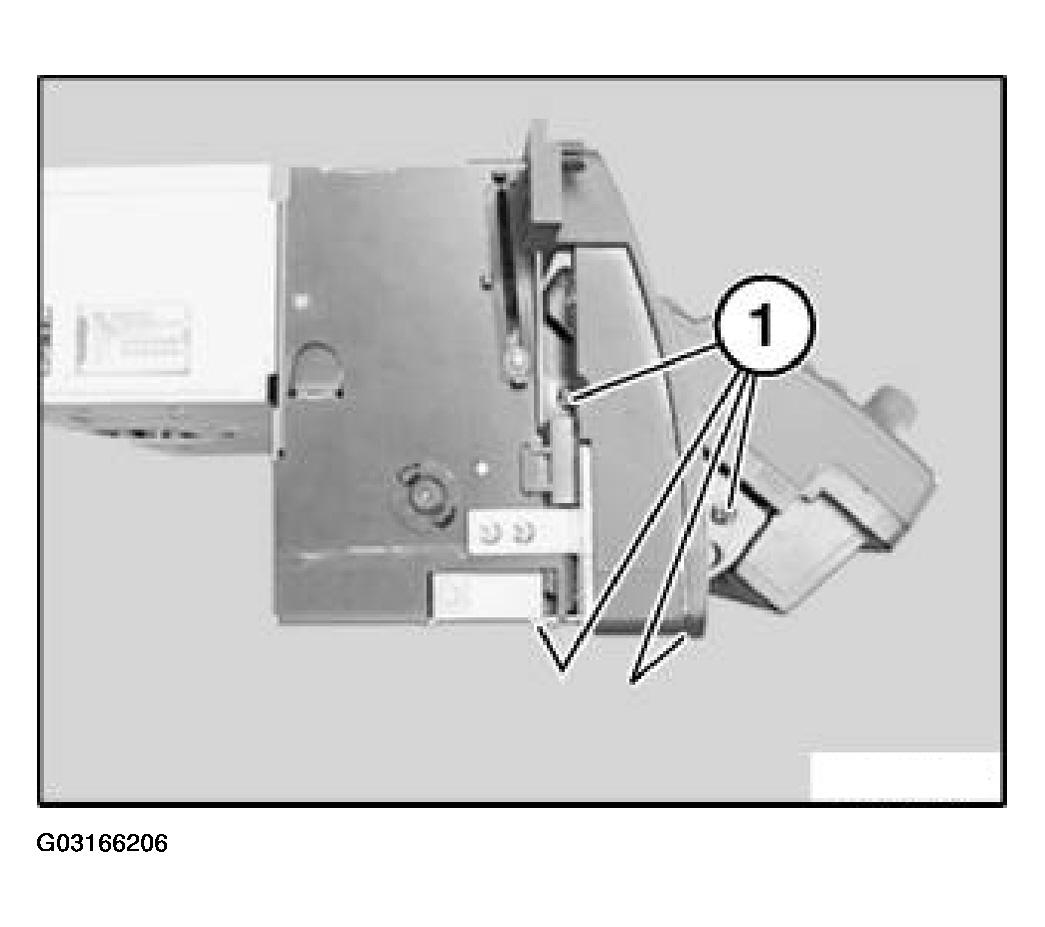

Release screws (1).

Fig 5: Releasing Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

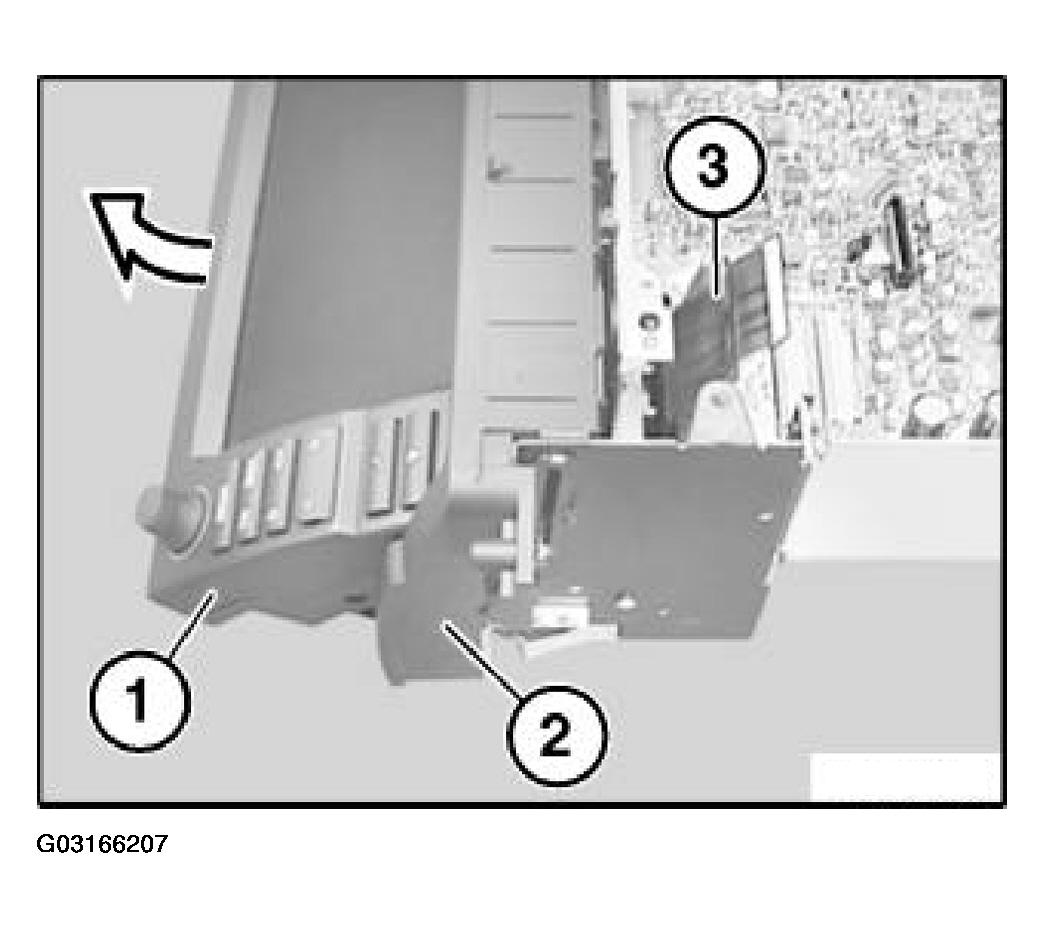

NOTE: Carefully feed out ribbon cables (3) when removing trim for on-board monitor (1).

Remove trim for on-board monitor (1) in direction of arrow from housing (2).

Fig 6: Removing Trim For On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.
