65 52 020 Replacing trim panel for on-board monitor (control panel)

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install complete onboard monitor, refer to 65 52 010 REMOVING AND INSTALLING ON-BOARD MONITOR .

CAUTION: Place trim panel on special tool 12 7 192 (anti-static mat) and ground.

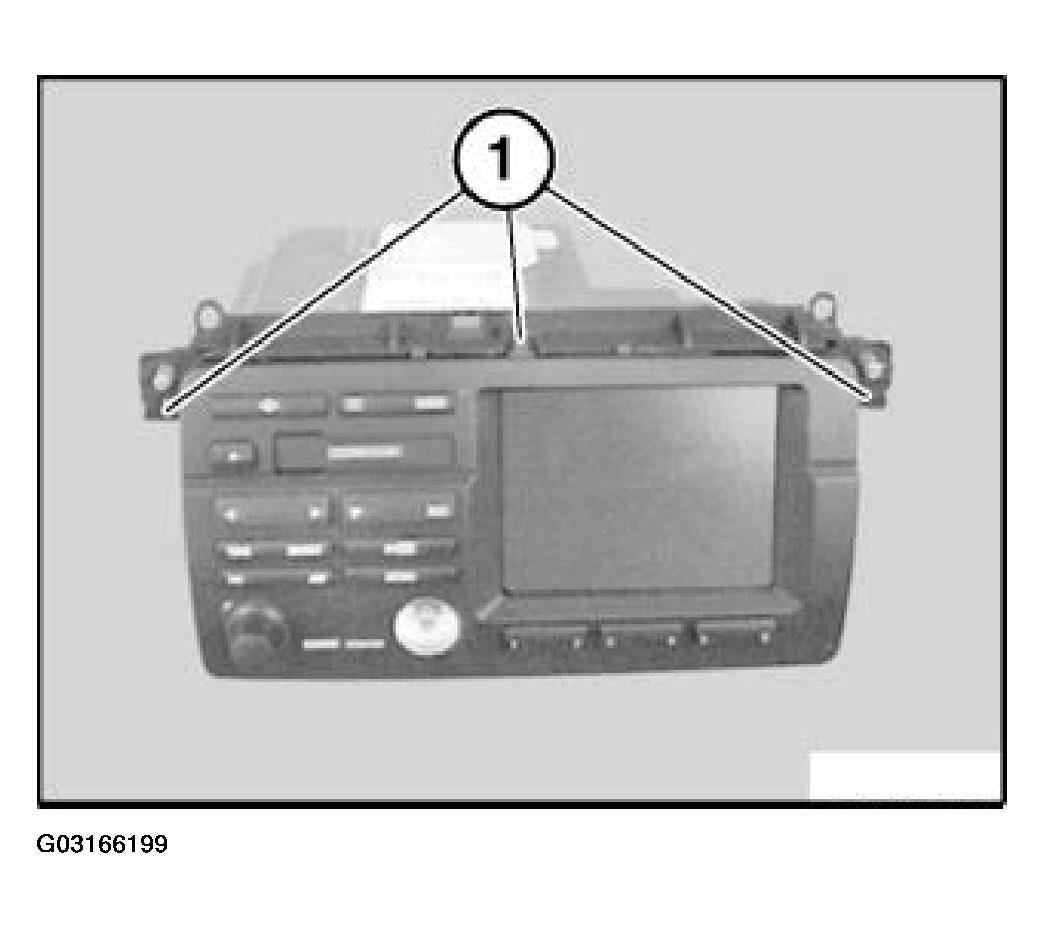

Release screws (1) and tilt trim panel out from above.

Fig 1: Release Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

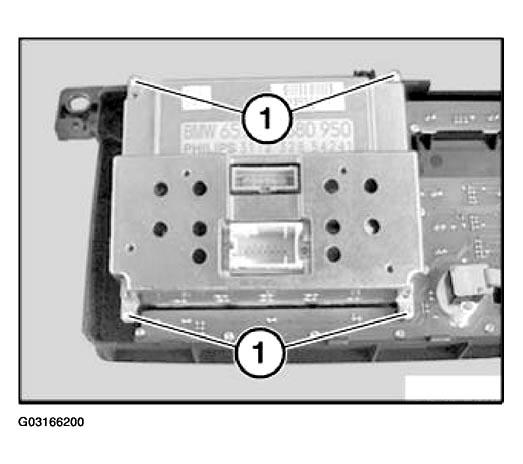

Release screws (1) and remove LC display.

Fig 2: Removing LC Display

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

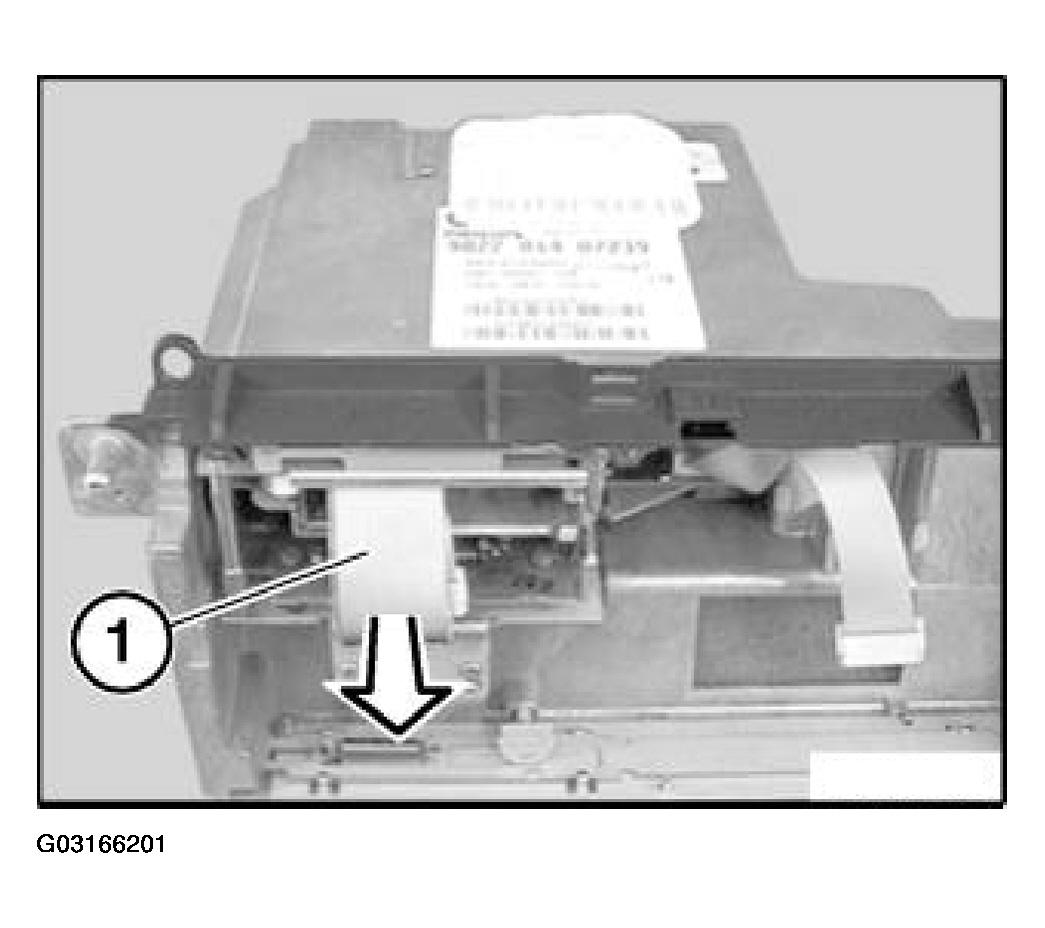

Lay wire (1) downwards.

Fig 3: Laying Wire Downwards

Courtesy of BMW OF NORTH AMERICA, INC.
