65 12 070 Removing and installing / replacing amplifier

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove luggage compartment wheel arch trim on left. See 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT TRUNK WHEEL HOUSING TRIM (TOURING)

Remove parcel shelf in luggage compartment on left.

Disconnect plug connection (1).

Loosen screws (2).

Remove amplifier (3) with holder.

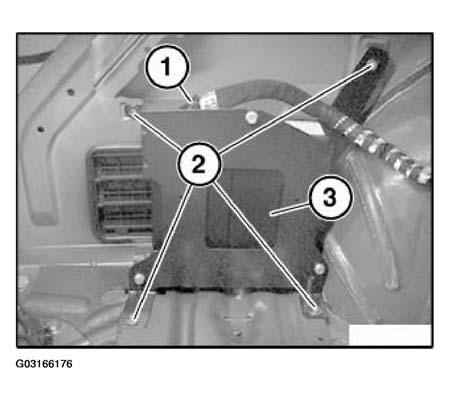

Fig 1: Removing Amplifier With Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Loosen screws (1).

Remove holder (2) from amplifier (3) towards top.

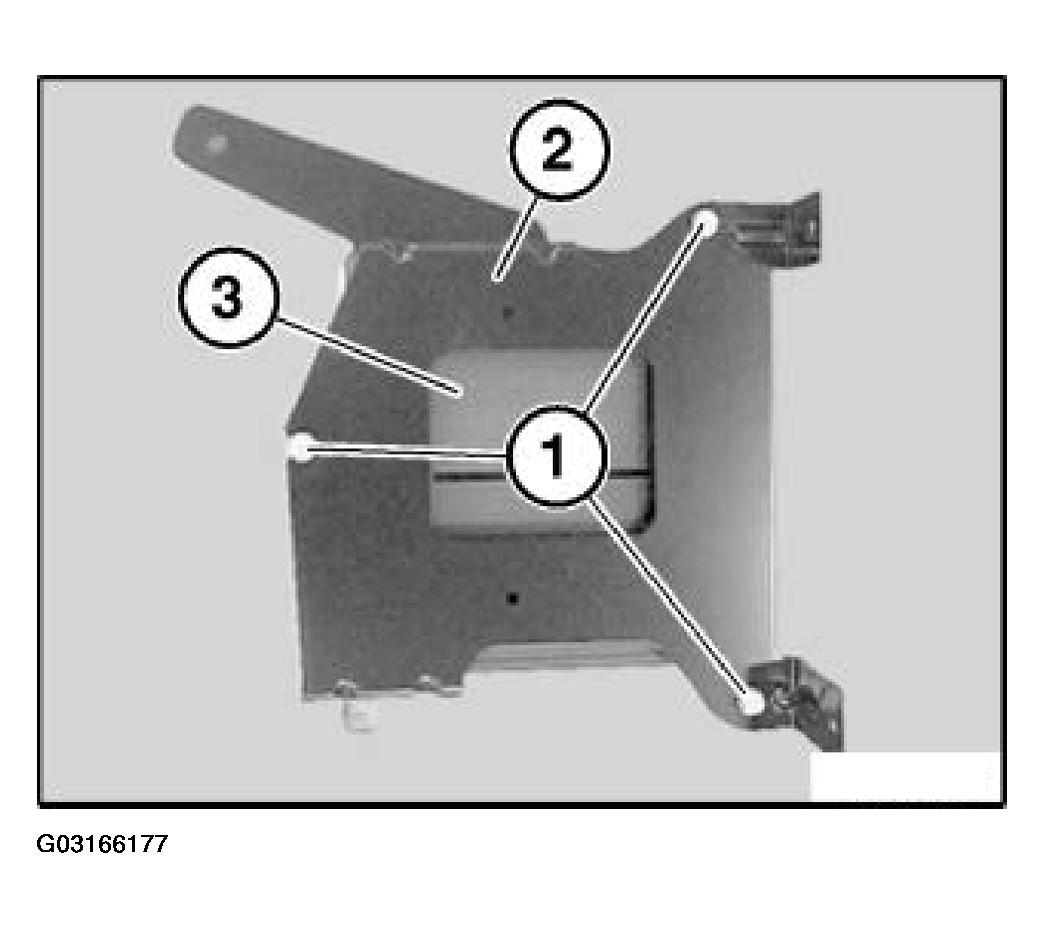

Fig 2: Removing Holder From Amplifier Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.
