65 11 070 Removing and installing / replacing CD-changer

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Touring:

Remove flap in luggage compartment trim panel on left. See 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN TRUNK TRIM PANEL, LEFT OR RIGHT (TOURING)

Loosen screws (1).

Withdraw CD changer (2) and disconnect plug connections.

Replacement:

Remove CD changer holder.

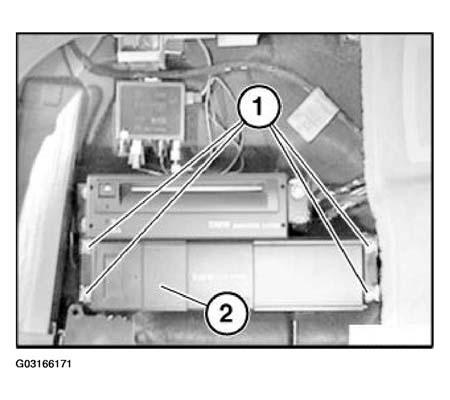

Fig 1: Removing CD Changer Holder (Touring)

G03166171

Courtesy of BMW OF NORTH AMERICA, INC.

Saloon/Sedan And Coupe:

Remove luggage compartment wheel arch trim on left. See 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT TRUNK WHEEL HOUSING TRIM (TOURING)

Loosen screws (1).

Withdraw CD changer (2) and disconnect plug connections.

Replacement:

Remove CD changer holder.

Fig 2: Removing CD Changer Holder (Saloon/Sedan And Coupe)

G03166172

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible:

Remove luggage compartment wheel arch trim on left. See 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT TRUNK WHEEL HOUSING TRIM (TOURING)

Remove holder for radio receiver. See 65 11 055 Removing and installing/replacing radio receiver (radio navigation or on-board monitor)

Loosen screws (1).

Withdraw CD changer (2) and disconnect plug connections.

Replacement:

Remove CD changer holder.

Fig 3: Removing CD Changer Holder (Convertible)

G03166173

Courtesy of BMW OF NORTH AMERICA, INC.
