65 75 565 Removing and installing/replacing ultrasound module

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

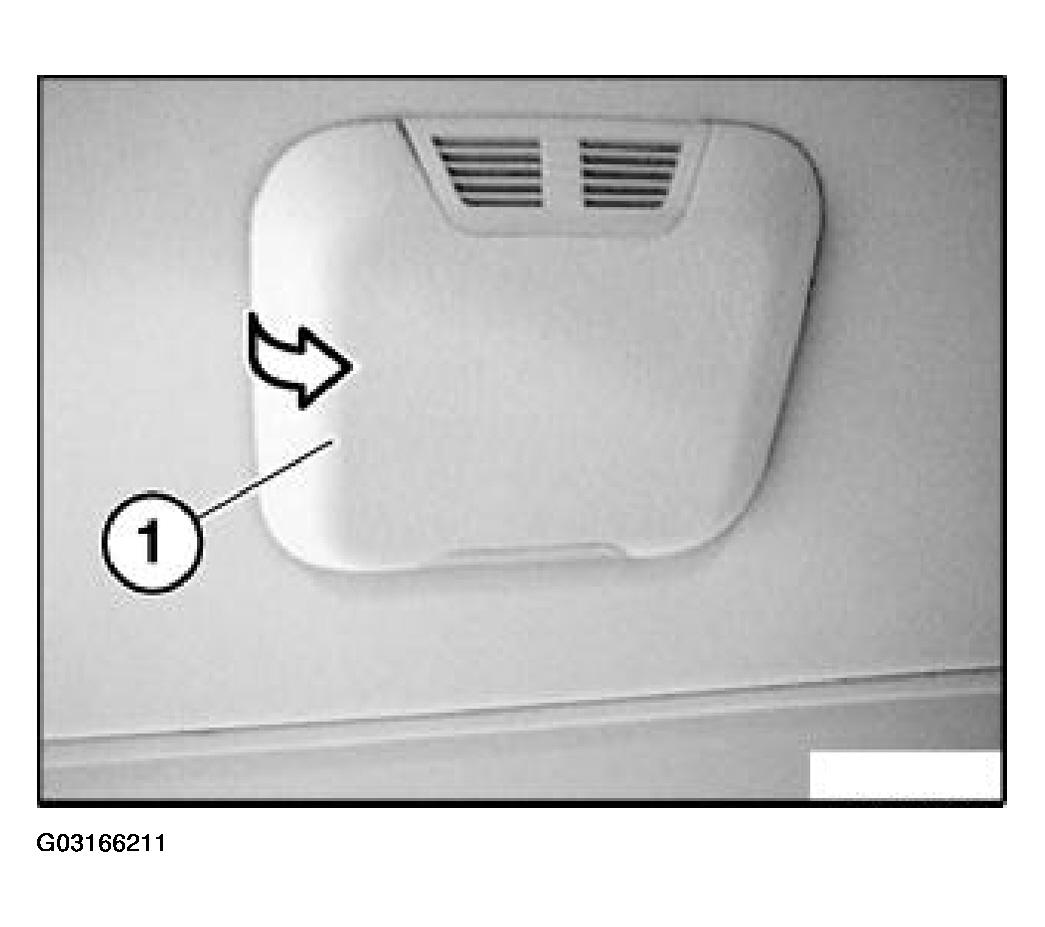

Remove trim (1) and disconnect plug connection.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

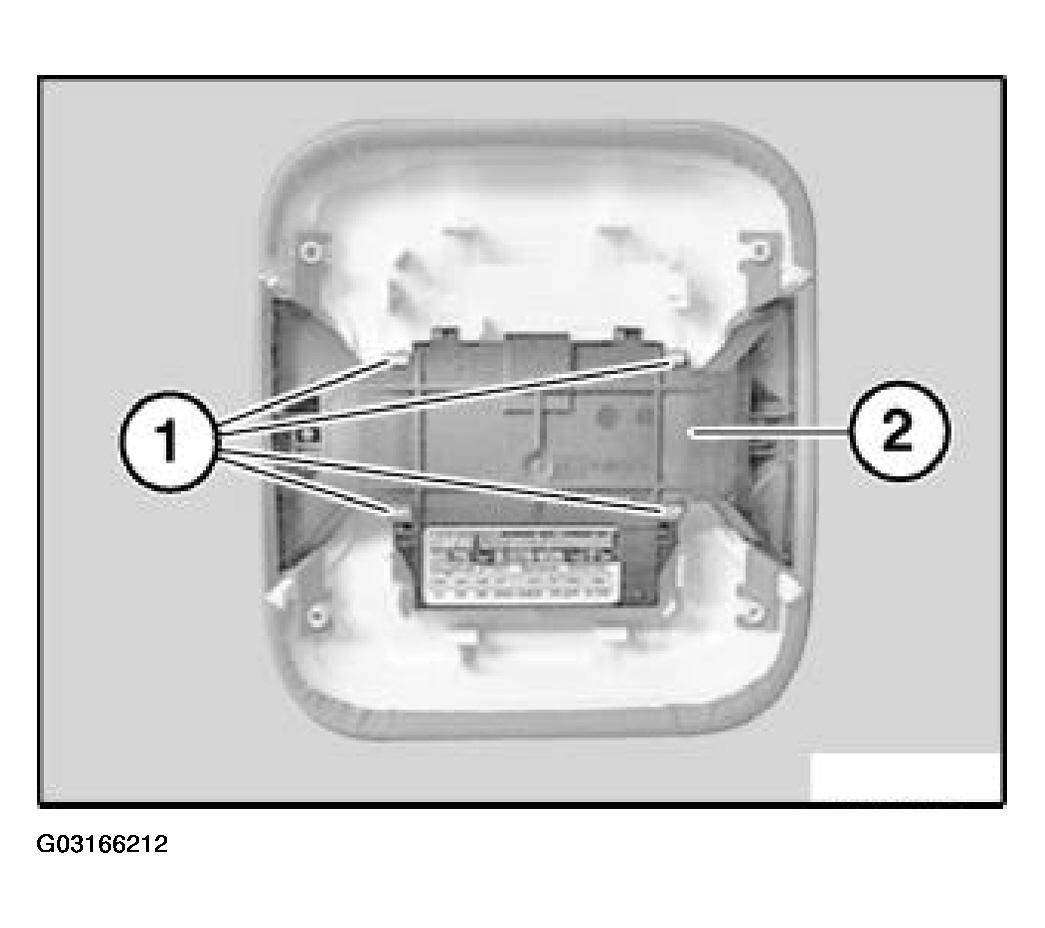

Lever out retaining clips (1) and remove ultrasound module (2).

Fig 2: Levering Out Retaining Clips (1) And Removing Ultrasound Module (2)

Courtesy of BMW OF NORTH AMERICA, INC.
