65 75 551 Removing and installing/replacing pitch sensor
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
Saloon/Sedan, Coupe, Convertible:
Release right trunk wheel arch trim in rear area.
NOTE:

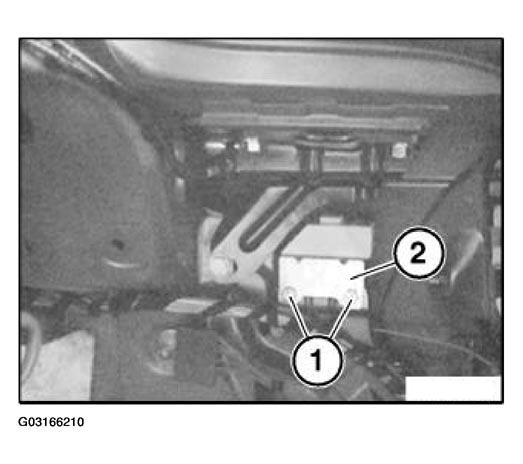

Secure nuts (1) against falling out.
Unscrew nuts (1).
Remove holder for tilt alarm sensor (2) towards inside.
Disconnect plug.
Replacement:
Unclip tilt sensor from holder.
