65 77 016 Removing and installing airbag control unit

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions! Refer to REMOVAL & INSTALLATION AIRBAG RESTRAINTS SYSTEMS article. Incorrect handling can activate airbag and cause injury.

Necessary Preliminary Tasks:

Remove storage compartment. See 51 16 200 REMOVING AND INSTALLING STORAGE TRAY
Disconnect battery negative lead. See 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY

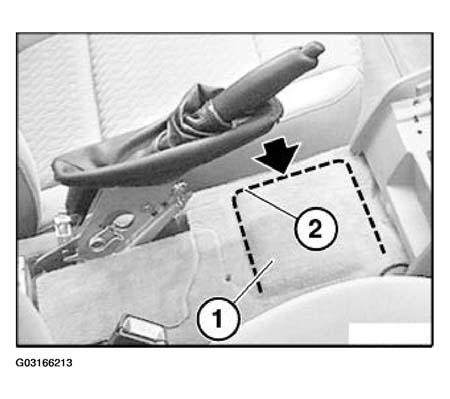

Cut carpet (1) along premarked line and fold back.

Installation:

Secure carpet (1) to position (2) using cable strap.

Fig 1: Securing Carpet To Position Using Cable Strap

G03166213

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (2), tightening torque, 8.8 N.m.

Fig 2: Releasing Nuts

G03166214

Courtesy of BMW OF NORTH AMERICA, INC.

Raise airbag control unit.

Fig 3: Raising Airbag Control Unit

G03166215

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before installing airbag control unit, make sure earth/ground cable is resting on stud bolt (1).

Unfasten plug connection and disconnect.

Lift out airbag control unit.
