64 11 942 Replacing evaporator temperature sensor

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Press back heating duct for left footwell (1) in direction of arrow.

Lever out evaporator temperature sensor (2) in direction of arrow and remove.

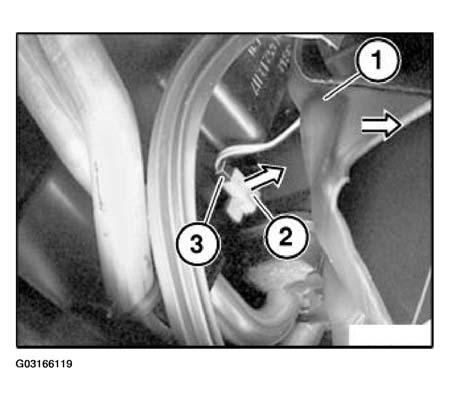

Fig 1: Disconnecting Plug Connection And Removing Evaporator Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3) and remove evaporator temperature sensor (2).

Installation:

Ensure evaporator temperature sensor (2) is correctly seated.
